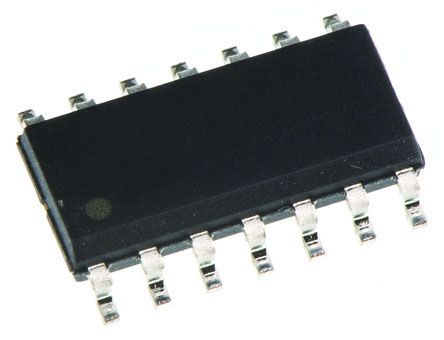

SN74LVC07ADR
| 制造商 | Texas Instruments Incorporated |
| 描述 | Buffer/Driver 6-CH Non-Inverting Open Drain CMOS 14-Pin SOIC T/R IC BUFF/DVR HEX NON-INV 14SOICN Buffers & Line Drivers Hex w/ HV Output IC, HEX BUFFER/DRIVER, SMD, SOIC14 Hex Buffer/Driver With Open-Drain Outputs LVC, 6-Bit 漏极开路 非反相 缓冲器，驱动器, 14针 SOIC封装 |
| 分类 |
商业参数
| 其他名称 | 296-8441-2 | 产品类别 | Buffers & Line Drivers |
| 标准包装数量 | Cut Tape, Tape & Reel | 工厂包装数量 | 2500 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
| 高可靠性 | Y | ||
电气参数
| 电压 | 1.8 2.5 2.7 3.3 5 | 输入类型 | TTL/CMOS |
| 逻辑类型 | LVC | 输出类型 | Open Drain |
| 输入信号 | Single-Ended | I/O 数量 | 5 V |
| 位数 | 10 | 额定电压 | 1.65 |
| 输入数量 | 6 | 供电电压 | 1.65 V ~ 5.5 V |
| 输出数量 | 6 | 通道数量 | 6 |
| 元件数量 | 6 | 最大额定电流 | Military |
| 输出1频率 | 110 | 施密特触发器输入 | No |
| 最小供电电压 | 1.65 V | 传播延迟（最大） | 5.6 |
| 静态电流 (Iq) | 10 uA | 传播延迟时间 | 3.6 ns at 3.3 V, 3.3 ns at 2.7 V, 2.6 ns at 5 V |
| 静态电流（最大） | 0.01 | 输出高/低电流 | -, 24mA |
| 每元件位数 | 1 | 输出源/灌电流 | -24/24 |
| 最大传播延迟 @ V, 最大CL | 3.6@3.3V|3.3@2.7V|2.6@5V ns | 传播延迟 tpLH / tpHL（最大） | 5.6 3.4 3.3 3.6 2.6 |
机械参数
| 宽度 | 4(Max) | 重量 | 0.004564 oz |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :14 |
| 封装形式 | 14SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 8.75(Max) |
| 包装数量 | SOIC | 位数 | 14 |
| 外壳尺寸-插件 | 1.5(Max) | 供应商器件封装 | 14-SOIC |
产品信息
| 系列 | SN74LVC07A | 工艺（或'制程'，根据具体值如CMOS） | CMOS |
| 功能 | Buffer/Driver | 极性 | Non-Inverting |
| 软件 | SCAS595V | 基本单元 | :74 |
| 技术 | CMOS | 图案编号 | Y |
| 功能框图 | alt_scas595v.gif | 射频系列/标准 | LVC |
| 使用的IC/零件 | View | 印刷电路板数量 | 14 |
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40°C ~ 85°C |
文档与媒体
