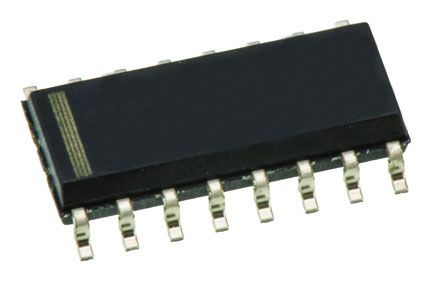

SN74HC138D
| 制造商 | |
| 描述 | Decoder/Demultiplexer Single 3-to-8 16-Pin SOIC Tube IC 3-8 LINE DECOD/DEMUX 16-SOIC SN74HC138D, Decoder, Demultiplexer HC, 1-of-8 Inverting 2 to 6V 16-Pin SOIC Encoders, Decoders, Multiplexers & Demultiplexers 3-to-8 Line Decoder DECODER/DEMULTIPLIER, SMD, SOIC16 3-Line To 8-Line Decoders/Demultiplexers Logic IC SO-16, SN74HC138, SN74HC138D, Texas Instruments Texas Instruments 反相 解码器、多路分解器, 8 线解复, 2 → 6 V电源, 16针 SOIC封装 |
| 分类 |
商业参数
| 产品 | Decoders / Demultiplexers | 产品类别 | Encoders, Decoders, Multiplexers & Demultiplexers |
| 标准包装数量 | Bulk, Rail / Tube | 工厂包装数量 | 40 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 电路 | 1 x 3:8 | 电压 | 3.3 5 |
| 逻辑类型 | HC | 输出类型 | Standard |
| 额定功率 | 320 mW | 位数 | 8 |
| 额定电压 | 5 V | 输出电流 | :5.2mA |
| 输入数量 | 3 | 供电电压 | 2 V ~ 6 V |
| 输出数量 | 8 | 元件数量 | 1 |
| 最大额定电流 | Catalog | 输出1频率 | 28 |
| 供电电源 | Single Supply | 最小供电电压 | 6 V |
| 传播延迟（最大） | 225 | 静态电流 (Iq) | 8 uA |
| 传播延迟时间 | 225 ns | 静态电流（最大） | 0.08 |
| 输出高/低电流 | 5.2mA, 5.2mA | 输出数量与类型 | 0 |
| 输出源/灌电流 | 5.2/-5.2 | 多路复用/解复用电路 | 1-of-8 |
| 传播延迟 tpLH / tpHL（最大） | 45 | ||
机械参数
| 宽度 | 3.91mm | 高度 | 1.58mm |
| 长度 | 9.9mm | 重量 | 0.004998 oz |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :16 |
| 封装形式 | 16SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 10(Max) |
| 包装数量 | SOIC | 尺寸/外形 | 9.9 x 3.91 x 1.58mm |
| 位数 | 16 | 外壳尺寸-插件 | 1.5(Max) |
| 供应商器件封装 | 16-SOIC N | ||
产品信息
| 类型 | Decoder/Demultiplexer | 系列 | SN74HC138 |
| 工艺（或'制程'，根据具体值如CMOS） | CMOS | 功能 | Decoder/Demultiplexer |
| 极性 | Inverting | 软件 | SCLS107E |
| 基本单元 | :74 | 技术 | CMOS |
| 应用 | :Data Transmission Systems, Memory Decoders | 线路数量 | 3 / 8 |
| 射频系列/标准 | HC | 使用的IC/零件 | View |
| 独立电路数 | 1 | 应用细节 | :Data Transmission Systems, Memory Decoders |
| 印刷电路板数量 | 16 | 输入数量及类型 | 3 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
