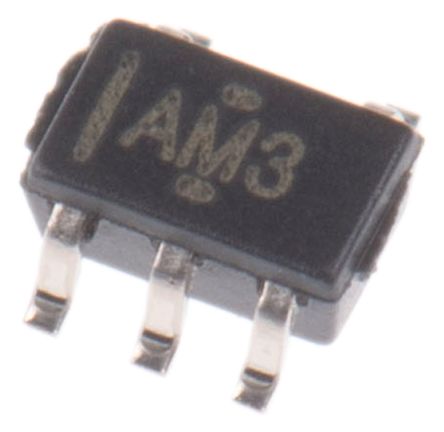

SN74AHC1G125DCKR
| 制造商 | Texas Instruments Incorporated |
| 描述 | Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SC-70 T/R IC BUS BUFF TRI-ST N-INV SC705 SN74AHC1G125DCKR, Bus Buffer, AHC, 11.5 @ 3.3 Vns, 8mA 2 to 5.5V 5-Pin SC-70 Buffers & Line Drivers Tri-State Single Bus BUFFER GATE, SINGLE, SMD, SC-70-5 Single Bus Buffer Gate with 3-State Output Logic IC SC-70-5, SN74AHC1G125, SN74AHC1G125DCKR, Texas Instruments AHC 总线缓冲器, 11.5 ns @ 3.3 V, 8mA, 2 → 5.5 V, 5针 SC-70封装 |
| 分类 |
商业参数
| 其他名称 | 296-8745-2 | 产品类别 | Buffers & Line Drivers |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 3000 |
| 标准封装名称 | SOT-323 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 电压 | 3.3 5 | 输入类型 | CMOS |
| 逻辑类型 | AHC | 输出类型 | 3-State |
| 输入信号 | Single-Ended | 位数 | 1 |
| 额定电压 | 2 V | 输入数量 | 1 |
| 供电电压 | 2 V ~ 5.5 V | 输出数量 | 1 |
| 传播延迟 | 50pF | 通道数量 | 1 |
| 元件数量 | 1 | 最大额定电流 | Catalog |
| 输出1频率 | 75 | 施密特触发器输入 | No |
| 最小供电电压 | 5.5 V | 传播延迟（最大） | 15 |
| 静态电流 (Iq) | 1 uA | 传播延迟时间 | 11.5 ns at 3.3 V, 7.5 ns at 5 V |
| 静态电流（最大） | 0.01 | 输出高/低电流 | 8mA, 8mA |
| 每元件位数 | 1 | 输出源/灌电流 | 50/-50 |
| 最大传播延迟 @ V, 最大CL | 11.5@3.3V|7.5@5V ns | 传播延迟 tpLH / tpHL（最大） | 11.5 7.5 |
| 共模瞬态抗扰度（最小） | Commercial | ||
机械参数
| 宽度 | 1.25mm | 高度 | 0.9mm |
| 长度 | 2mm | 重量 | 0.000088 oz |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :5 |
| 封装形式 | 5SC-70 | 冷却的封装 | SC-70 |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 2.15(Max) |
| 包装数量 | SC-70 | 尺寸/外形 | 2 x 1.25 x 0.9mm |
| 位数 | 5 | 外壳尺寸-插件 | 1(Max) |
| 供应商器件封装 | SC-70-5 | ||
产品信息
| 系列 | SN74AHC1G125 | 已删除 | Compliant |
| 工艺（或'制程'，根据具体值如CMOS） | CMOS | 功能 | Buffer/Line Driver |
| 极性 | Non-Inverting | 软件 | SCLS377K |
| 基本单元 | :74 | 技术 | CMOS |
| 功能框图 | alt_scls377k.gif | 射频系列/标准 | AHC |
| 使用的IC/零件 | View | 印刷电路板数量 | 5 |
