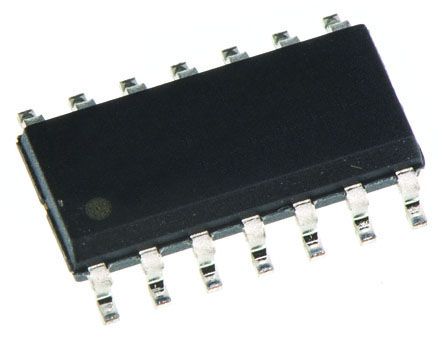

SN74AHC125D
| 制造商 | Texas Instruments Incorporated |
| 描述 | Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin SOIC Tube IC BUS BUFFER TRI-ST QD 14SOICN Buffers & Line Drivers Quad w/Tri-St Out Quadruple Bus Buffer Gates With 3-State Outputs Logic IC SOIC-14, SN74AHC125, SN74AHC125D, Texas Instruments AHC, 4-Bit 三态 非反相 缓冲器，线路驱动器, 14针 SOIC封装 |
| 分类 |
商业参数
| 产品类别 | Buffers & Line Drivers | 标准包装数量 | Rail / Tube, Bulk |
| 工厂包装数量 | 50 | 标准封装名称 | SOIC |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 电压 | 3.3 5 | 输入类型 | CMOS |
| 逻辑类型 | AHC | 输出类型 | 3-State |
| 输入信号 | Single-Ended | 位数 | 4 |
| 额定电压 | 2 | 供电电流 | 40 uA |
| 输入数量 | 4 | 供电电压 | 2 V ~ 5.5 V |
| 输出数量 | 4 | 通道数量 | 4 |
| 元件数量 | 4 | 最大额定电流 | Catalog |
| 输出1频率 | 110 | 施密特触发器输入 | No |
| 最小供电电压 | 2 V | 传播延迟（最大） | 50pF |
| 静态电流 (Iq) | 4 uA | 传播延迟时间 | 11.5 ns at 3.3 V, 7.5 ns at 5 V |
| 静态电流（最大） | 0.04 | 输出1电流范围 | 8mA |
| 输出2电流（范围） | -8mA | 输出高/低电流 | 8mA, 8mA |
| 每元件位数 | 1 | 输出源/灌电流 | -50/50 |
| 最大传播延迟 @ V, 最大CL | 11.5@3.3V|7.5@5V ns | 传播延迟 tpLH / tpHL（最大） | 11.5 8.5 |
机械参数
| 宽度 | 3.91mm | 高度 | 1.58mm |
| 长度 | 8.65mm | 重量 | 0.004564 oz |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | 14 | 封装形式 | 14SOIC |
| 冷却的封装 | SOIC | 总长度 | 8.75(Max) |
| 包装数量 | SOIC | 尺寸/外形 | 8.65 x 3.91 x 1.58mm |
| 位数 | 14 | 外壳尺寸-插件 | 1.5(Max) |
| 供应商器件封装 | 14-SOIC | 脉冲宽度失真（最大） | 11.5 ns @ 3.3 V |
产品信息
| 系列 | SN74AHC125 | 已删除 | Compliant |
| 工艺（或'制程'，根据具体值如CMOS） | CMOS | 功能 | Buffer/Line Driver |
| 极性 | Non-Inverting | 软件 | SCLS256K |
| 技术 | CMOS | 制造商全称 | Texas Instruments |
| 射频系列/标准 | AHC | 使用的IC/零件 | View |
| 印刷电路板数量 | 14 | ||
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40°C ~ 85°C |
文档与媒体
