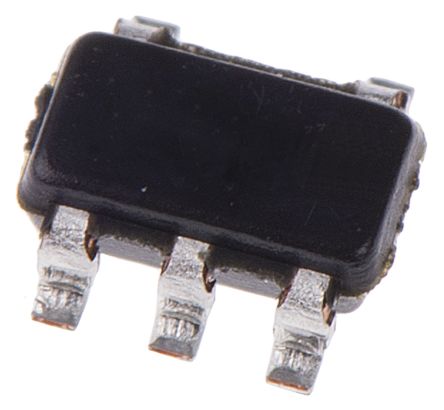

SN74AHC1G08DBVR

制造商	Texas Instruments Incorporated
描述	AND Gate 1-Element 2-IN CMOS 5-Pin SOT-23 T/R IC SGL 2IN POS-AND GATE SOT23-5 Logic Gates Single 2-Input IC, AND GATE, SINGLE, 5SOT23 Single 2-Input Positive-AND Gate Logic IC SOT-23-5, SN74AHC1G08, SN74AHC1G08DBVR, Texas Instruments Texas Instruments 逻辑门, 8mA, 2 → 5.5 V, 5针 SOT-23封装
分类	集成电路逻辑IC标准逻辑IC

对参数有疑问？问 AI 助手

商业参数

产品	AND	其他名称	296-1091-2
产品类别	Logic Gates	标准包装数量	Tape & Reel
工厂包装数量	3000

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85423990	零件状态	:74AHC1G08
抗辐射加固	No

电气参数

电压	3.3 5	输入类型	CMOS
逻辑类型	AND Gate	输出类型	CMOS
位数	1	额定电压	2 V
输出电流	:8mA	输入数量	2
供电电压	2 V ~ 5.5 V	输出数量	1
元件数量	1	最大额定电流	Catalog
输出1频率	75	最小供电电压	5.5 V
静态电流 (Iq)	1 uA	传播延迟时间	12.3 ns
逻辑电压 - VIL, VIH	1.5 V ~ 3.85 V	静态电流（最大）	1µA
输出高/低电流	8mA, 8mA	输出源/灌电流	50/-50
最大传播延迟 @ V, 最大CL	12.3@3.3V\|7.9@5V ns	传播延迟 tpLH / tpHL（最大）	12.3 7.9

机械参数

重量	0.000557 oz	包装方式	Tape & Reel (TR)
端接方式	:SMD	安装类型	Surface Mount
安装样式	SMD/SMT	引脚数	:5
封装形式	5SOT-23	冷却的封装	SOT-23
材料表面处理	:MSL 1 - Unlimited	包装数量	3000 \| LARGE T&R
位数	5	供应商器件封装	SOT-23-5

产品信息

系列	SN74AHC1G08	已删除	Compliant
产品特性	Schmitt Trigger	功能	AND
软件	SCLS314O	基本单元	:74
技术	CMOS	图案编号	Y
门数量	1	线路数量	2 / 1
功能框图	fbd_scls314o.gif	电路数	1
射频系列/标准	AHC	使用的IC/零件	View
输入数量及类型	0

环境参数

测试温度

-55 to 125

工作温度

-40 to 85 °C

文档与媒体

PDF 文档
