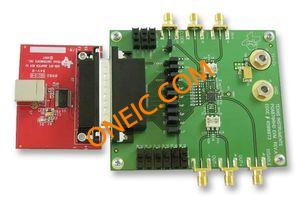

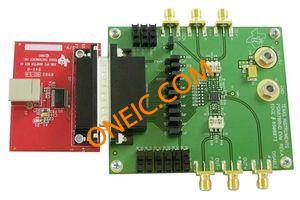

PGA870EVM
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Modulehigh-Speed Fully Differential Programmable Gain Amplifier Amplifier IC Development Tools PGA870EVM Eval Mod EVAL MODULE FOR PGA870 Development Tool Type PGA870, PGA, HIGH SPEED, EVAL MOD |
| 分类 |
商业参数
| 产品 | Development Tools | 产品类别 | Amplifier IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 00000000 | ||
电气参数
| 压摆率 | 2900 V/µs | 供电电压 | 5 V |
| 元件数量 | :PGA870 | 输出电流/通道 | 50mA |
| 主IC供电电流 | 143mA | ||
机械参数
| 重量 | 0 | -3dB带宽 | 650MHz |
| 电路板厚度 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 内容 | 2 Boards, Cable, Software |
| 产品特性 | :On Board Switches for Device Power-up and Power-down, Gain Setting, and Gain Latch Modes | 套件类型 | :Amplifier |
| 套件内容 | :CD-ROM | 放大器类型 | Programmable Gain |
| 每IC通道数 | 1 - Single | 工具类型/特性 | PGA870 |
| 射频系列/标准 | PGA870 | 使用的IC/零件 | PGA870 |
| 芯片组制造商 | :Texas Instruments | 应用细节 | :Operational Amplifier |
| 支持MCU系列 | :PGA870 | ||
环境参数
| 工作温度 | -40°C ~ 85°C | ||
