929950-00
| 制造商 | 3M Company |
| 描述 | Conn Shunt SKT 2 POS 2.54mm ST SHORTING JUMPER UNPLATED BLK Shunt Midgie; Copper Alloy; 50 uin. Nickel; 1; Black; gt 5 x 109 Ohms @ 500 VDC ShuntMidgie;CopperAlloy;50uin.Nickel;1;Black;gt5x109Ohms@500VDC |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 认证机构 | cUL,UL |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 接口 | RectangularSocket | 最大额定电流 | 1A |
| 绝缘电阻 | >5x109Ohms@500VDC | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 0.298" (7.57mm) | 包装方式 | Bulk |
| 外壳颜色 | Black | 行程角度 | Straight |
| 接触镀层 | Unplated | 排数 | 1 |
| 端子样式 | ShuntedContacts | 触头材料 | CopperAlloy |
| 壳体材料 | GlassFilledPolyester | 总长度 | 0.298" |
| 触点数 | 2 | 绝缘材料 - 材质 | GlassFilledPolyester(PBT) |
| 位置或引脚数（网格） | 2 (1 x 2) | ||
产品信息
| 类型 | Shunt | 连接器性别 | Female Sockets |
| 制造商全称 | 929Series | ||
环境参数
| 工作温度 | -55to+100°C | ||
文档与媒体
相关型号
961102-6404-AR
3m interconnect solutions
PIN STRIP HEADER, 961 SERIES, 961102-6404-AR CONN HEADER VERT SGL 2POS GOLD Headers & Wire Housings 2P STRT 1 ROW GOLD 5.5MM MATING PIN Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole BOARD TO BOARD, HEADER, 2POS, 1ROW Header;PinStrip;CopperAlloy;HighTempThermoplastic;2Cnts;2A;Str;961Series 3M 961 系列 2.54mm节距 2路 (1排) 直 引脚管座, 焊接端接, 2A , 通孔
961103-6404-AR
3m interconnect solutions
PIN STRIP HEADER Headers & Wire Housings 3P STRT 1 ROW GOLD 5.5MM MATING PIN CONN HEADER VERT SGL 3POS GOLD BOARD TO BOARD, HEADER, 3POS, 1ROW Header;PinStrip;CopperAlloy;HighTempThermoplastic;3Cnts;2A;Str;961Series
929974-01-04-RK
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 4P 1ROW STRT SOCKET .100" and .100" Ã .100" Straight, Solder Tails, 1 row (1-40 contacts) or 2 row (2-80 contacts) CONN RECEPT .100 SNGL STR 4POS Headers & Wire Housings 4P 1ROW STRT SOCKET SOCKET HEADER, 4POS, 1ROW, 2.54MM Socket;Boardmount;4Cnt;0.100In;Straight;SolderTail;TinPlating
929647-01-02-I
3M Electronic Solutions Division
Headers & Wire Housings 2P STRT 1 ROW GOLD .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER 2POS STR .100 GOLD BOARD-BOARD CONN, HEADER, 2POS, 1ROW Conn;Rect;Header;PinStrip;0.100in;2Pin;Straight;0.10inTail

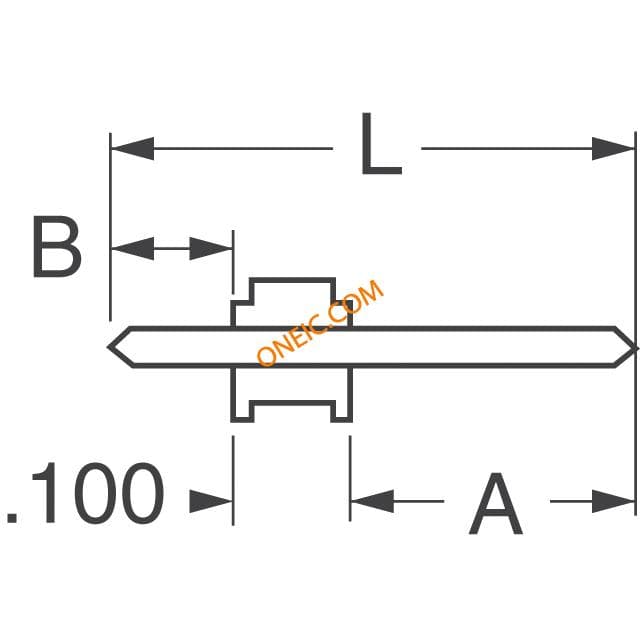

929647-01-03-I
