点击放大查看

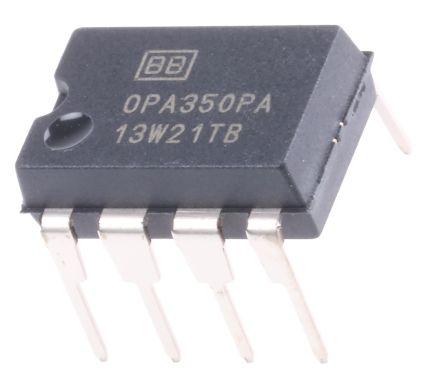

OPA350PA
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Single GP R-R I/O 5.5V 8-Pin PDIP Tube IC OPAMP GP 38MHZ RRO 8DIP High Speed Operational Amplifiers Hi-Spd Single-Sply Rail-to-Rail OP AMP, HIGHSPEED RRI/O, DIP8, 350 Operational amplifier; 38MHz; 2.5÷5.5VDC; Channels:1; DIP8 High-Speed, Single-Supply, Rail-to-Rail Operational Amplifiers MicroAmplifier(TM) Series Operational Amplifier Single 38 MHz DIL-8, OPA350, OPA350PA, Texas Instruments Texas Instruments 运算放大器, 38MHz CMOS、轨至轨, 3 V 5 V, 8针 PDIP |
| 分类 |
商业参数
| 产品类别 | High Speed Operational Amplifiers | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 50 | 标准封装名称 | PDIP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423300 |
| 零件状态 | :350 | 抗辐射加固 | No |
电气参数
| 增益 | 122 dB | 电源抑制比 | 87.96 dB |
| 接口 | :Rail-Rail I/O | 压摆率 | 22@5V V/us |
| 1kHz噪声电压 | 18 | 输出类型 | CMOS|Rail to Rail |
| 失调漂移 | 4 | 输入功率 | Single |
| 上升时间（典型） | 22V/μs | 晶体管类型 | :High Speed |
| 共模抑制比、电源抑制比（典型） | 66 dB | 输出电流 | 5.2mA |
| 供电电压 | 2.7 V | 供电类型 | Single |
| 通道数量 | 1 | 元件数量 | 1 |
| 输入偏置电流 | 0.5pA | 最大额定电流 | Catalog |
| ADC/DAC 数量 | :1 | 最小输入电压 | 150µV |
| 增益带宽积 | 38 MHz | 轨到轨工作 | Rail to Rail Input/Output |
| 静态电流 (Iq) | 7.5 | 输入偏置电流（最大） | 0.00001@5.5V uA |
| 输出电流/通道 | 40mA | 输入失调电流（最大） | 0.00001@5.5V |
| 供电电压 (Vcc/Vdd) | 5.5 | 25°C失调电压 | 0.5 |
| 输入噪声电流密度 | 0.004@5V pA/rtHz | 输入噪声电压密度 | 7@5V nV/rtHz |
| 电源电压范围（典型） | Not Required V | 频段（低/高） | 38MHz |
| 输入失调电压（最大） | 0.5@5V mV | 电压输出差（典型值）@ 距离 | 122 dB |
机械参数
| 宽度 | 6.6(Max) | 重量 | 0.018455 oz |
| 带宽 | :38MHz | 包装方式 | Tube |
| 引脚样式 | Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :8 |
| 封装形式 | 8PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 10.16(Max) |
| 包装数量 | PDIP | 位数 | 8 |
| 外壳尺寸-插件 | 5.08(Max) - 0.51(Min) | 供应商器件封装 | 8-PDIP |
产品信息
| SPG | 10 | 类型 | General Purpose Amplifier |
| 系列 | OPA350 | 关断 | No |
| 软件 | SBOS099C | 基本单元 | :350 |
| 技术 | CMOS | 制造商全称 | Low Offset Voltage Amplifier |
| 放大器类型 | General Purpose | 图案编号 | Y |
| 单元数量 | 1 | 电路数 | 1 |
| 使用的IC/零件 | View | 其他规格 | :Single Supply Operation |
| 印刷电路板数量 | 8 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
