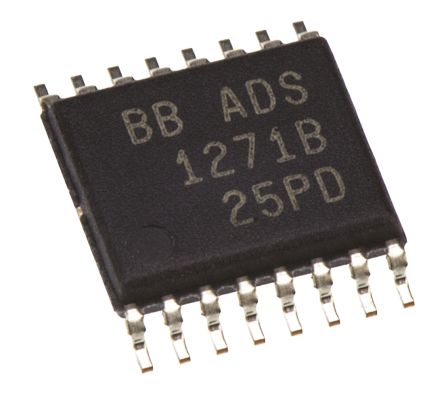

ADS1271IBPW
| 制造商 | Texas Instruments Incorporated |
| 描述 | ADC Single Delta-Sigma 105ksps 24-bit Serial 16-Pin TSSOP Tube Analog to Digital Converters - ADC 24B 105kSPS Indus Delta-Sigma ADC Single ADC Delta-Sigma 105ksps 24-bit Serial 16-Pin TSSOP Tube IC ADC 24BIT DELTA-SIGMA 16TSSOP 24BIT ADC, 105KSPS, DELTA S, 16TSSOP 24-Bit, 105kSPS Industrial Delta-Sigma ADC Texas Instruments , 24 位 ADC, 差分输入, SPI接口, 16针 TSSOP封装 |
| 分类 |
商业参数
| 其他名称 | 296-21722-5 | 产品类别 | Analog to Digital Converters - ADC |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 90 |
| 标准封装名称 | TSSOP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 接口 | Serial (SPI) | 线性度 | �1LSB |
| 信噪比 | 109(Typ) dB | 输入类型 | Voltage |
| 分辨率 | 24 Bit | 输入信号 | Differential |
| INL/DNL（LSB） | ±0.0015%FSR | 输入功率 | Analog and Digital |
| 额定功率 | 136 W | 转换器类型 | General Purpose |
| 数据接口 | Serial, SPI™ | 输入极性 | Bipolar |
| 位数 | 24 | 基准类型 | Ext |
| 额定电压 | ±2.5V | 数据速率（最大） | 105 KSPs |
| 额定电压值 | �2.5 | 输出电流 | :17mA |
| 输入数量 | :1 | 供电电压 | 1.8 V to 3.3 V, + 5 V |
| 分辨率（位） | :24bit | 电压基准 | 2.5 V |
| 通道数量 | 1 | 元件数量 | 1 |
| 采样频率 | 105 ksps | 模拟输入/输出 | 5.25 |
| 最大额定电流 | Catalog | ADC/DAC 数量 | 1 |
| 供电电源 | Analog and Digital | 上升/下降时间（典型） | :105µs |
| 平均正向功率 | 92 | 最大功耗 | 136 mW |
| 差分非线性 | ±1LSB | 数字供电电压 | :1.65V to 3.6V |
| 内部供电电压 | :4.75V to 5.25V | 采样率（每秒） | 52.73k, 105.47k |
| 差分 - 输入:输出 | Yes | 电源电压范围（典型） | Not Required V |
| 信噪比，ADC/DAC（dB）典型值 | 109 dB | 共模瞬态抗扰度（最小） | Extended Industrial |
机械参数
| 宽度 | 4.5(Max) | 重量 | 0.002183 oz |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :16 |
| 封装形式 | 16TSSOP | 冷却的封装 | TSSOP |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 5.1(Max) |
| 包装数量 | TSSOP | 位数 | 16 |
| 外壳尺寸-插件 | 1.05(Max) | 供应商器件封装 | 16-TSSOP |
产品信息
| 系列 | ADS1271 | 软件 | SBAS306F |
| 基本单元 | :1271 | 架构 | Delta-Sigma |
| 功能框图 | fbd_sbas306f.gif | 使用的IC/零件 | View |
| 印刷电路板数量 | 16 | A/D转换器数量 | 1 |
| 输入数量及类型 | 1 Differential, Bipolar | ||
