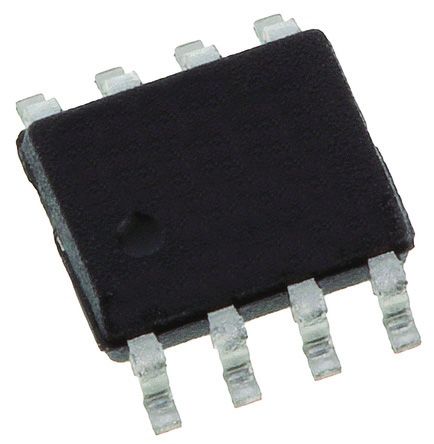

THS4521ID
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Single GP R-R O/P ±2.75V/5.5V 8-Pin SOIC Rail IC OPAMP DIFF 95MHZ RRO 8SOIC THS4521ID, Operational Amplifier 95MHz R-R, 5V, 8-Pin SOIC Differential Amplifiers Very low pwr R-R out put fully Diff amp OP Amp Single GP R-R O/P ?2.75V/5.5V 8-Pin SOIC Rail IC, DIFF AMP, 145MHZ, 480V/ uS, SOIC-8 VERY LOW POWER R/R FULLY DIFF AMP Very low power rail-to-rail output fully differential amplifier Differential Amplifier SO-8, THS4521, THS4521ID, Texas Instruments Texas Instruments 运算放大器, 95MHz 轨至轨, 5 V, 8针 SOIC |
| 分类 |
商业参数
| 其他名称 | 296-24076-5 | 产品类别 | Differential Amplifiers |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 75 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 增益 | 0.99 V/V | 电源抑制比 | 80 dB |
| 压摆率 | 600@5V V/us | 输出类型 | Rail to Rail |
| 输入功率 | Single/Dual | 建立时间 | 10 |
| 平带噪声电压 | 4.6 | 共模抑制比、电源抑制比（典型） | 80 dB |
| 输出电流 | 1.14mA | 供电电压 | 3 V |
| 供电类型 | Single|Dual | 通道数量 | 1 |
| 元件数量 | 1 | 输入偏置电流 | 700nA |
| 最大额定电流 | Catalog | ADC/DAC 数量 | :1 |
| 最小输入电压 | 240µV | 增益带宽积 | 95 MHz |
| 轨到轨工作 | Rail to Rail Output | 静态电流 (Iq) | 1 |
| 输入偏置电流（最大） | 0.9@5V uA | 输出电流/通道 | 55mA |
| 输入失调电流（最大） | 0.00006@5V | 供电电压 (Vcc/Vdd) | 5.5 |
| 输入噪声电流密度 | 0.6@5V pA/rtHz | 输入噪声电压密度 | 4.6@5V nV/rtHz |
| 输入失调电压（最大） | 2@5V mV | 共模瞬态抗扰度（最小） | Industrial |
| 电压输出差（典型值）@ 距离 | 119 dB | ||
机械参数
| 宽度 | 4(Max) | 重量 | 0.002677 oz |
| 带宽 | 145 MHz | 包装方式 | Rail |
| 引脚样式 | Gull-wing | 端接方式 | :SMD |
| 安装类型 | Surface Mount | -3dB带宽 | 145MHz |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 5(Max) |
| 包装数量 | SOIC | 位数 | 8 |
| 外壳尺寸-插件 | 1.5(Max) | 供应商器件封装 | 8-SOIC |
产品信息
| 类型 | General Purpose Amplifier | 系列 | THS4521 |
| 关断 | No | 软件 | SBOS458H |
| 基本单元 | :4521 | 架构 | Fully Differential Voltage Feedback |
| 制造商全称 | Low Power Amplifier | 放大器类型 | Differential |
| 图案编号 | Y | 功能框图 | fbd_sbos458h.gif |
| 电路数 | 1 | 使用的IC/零件 | View |
| 印刷电路板数量 | 8 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
