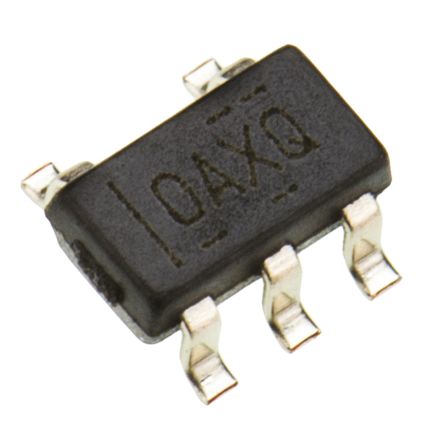

点击放大查看
OPA333AIDBVT
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Single GP R-R I/O ±2.75V/5.5V 5-Pin SOT-23 T/R IC OPAMP CHOPPER 350KHZ SOT23-5 OP Amp Single GP R-R I/O �2.75V/5.5V 5-Pin SOT-23 T/R IC, OP-AMP, 350KHZ, 0.16V/ us, SOT-23-5 1.8V, 17µA, microPower, Precision, Zero Drift CMOS Op Amp Operational Amplifier 350 kHz SOT-23-5, OPA333, OPA333AIDBVT, Texas Instruments Texas Instruments 运算放大器, 350kHz CMOS、轨至轨, 3 V 5 V, 5针 SOT-23 Operational Amplifiers - Op Amps 1.8V 17uA 2uV microPOWER CMOS |
| 分类 |
商业参数
| 其他名称 | 296-19546-2 | 标准包装数量 | Tape & Reel |
| 标准封装名称 | SOT-23 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85411000 | 零件状态 | ACTIVE |
| 抗辐射加固 | No | ||
电气参数
| 增益 | 130 dB | 电源抑制比 | 120 dB |
| 压摆率 | 0.16@5.5V V/us | 1kHz噪声电压 | 55 |
| 输出类型 | CMOS|Rail to Rail | 失调漂移 | 0.02 |
| 输入功率 | Single/Dual | 晶体管类型 | :Low Offset Voltage |
| 共模抑制比、电源抑制比（典型） | 106 dB | 输出电流 | 17µA |
| 供电电压 | 1.8 V | 供电类型 | Single|Dual |
| 通道数量 | 1 | 元件数量 | 1 |
| 输入偏置电流 | 70pA | 最大额定电流 | Catalog |
| ADC/DAC 数量 | :1 | 最小输入电压 | 2µV |
| 增益带宽积 | 0.35 MHz | 轨到轨工作 | Rail to Rail Input/Output |
| 静态电流 (Iq) | 0.025 | 输入偏置电流（最大） | 0.0002@5.5V uA |
| 输出电流/通道 | 5mA | 输入失调电流（最大） | 0.0004@5.5V |
| 供电电压 (Vcc/Vdd) | 5.5 | 25°C失调电压 | 0.01 |
| 输入噪声电流密度 | 0.1@5.5V pA/rtHz | 输入失调电压（最大） | 0.01@5V mV |
| 电压输出差（典型值）@ 距离 | 130 dB | ||
机械参数
| 宽度 | 1.75(Max) | 重量 | 0.002 |
| 带宽 | :350kHz | 包装方式 | Tape and Reel |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 引脚数 | :5 | 封装形式 | 5SOT-23 |
| 冷却的封装 | SOT-23 | 材料表面处理 | :MSL 1 - Unlimited |
| 总长度 | 3.05(Max) | 包装数量 | SOT-23 |
| 位数 | 5 | 外壳尺寸-插件 | 1.3(Max) |
| 供应商器件封装 | SOT-23-5 | ||
产品信息
| 类型 | General Purpose Amplifier | 关断 | No |
| 软件 | SBOS351D | 技术 | CMOS |
| 制造商全称 | Low Offset Voltage Amplifier | 放大器类型 | Chopper (Zero-Drift) |
| 图案编号 | Y | 功能框图 | alt_sbos351d.gif |
| 电路数 | 1 | 使用的IC/零件 | View |
| 印刷电路板数量 | 5 | ||
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 125 °C |
