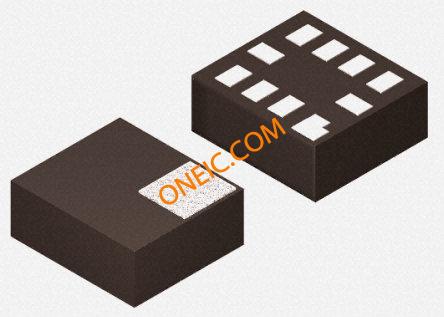

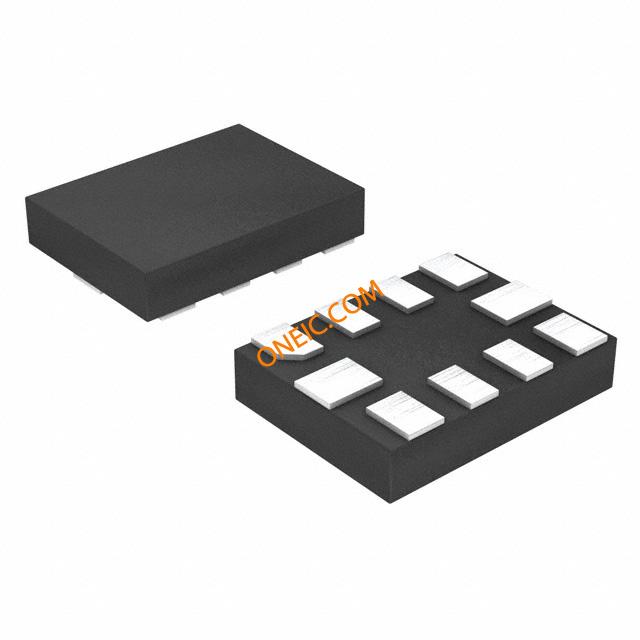

ADS1015IRUGT

点击放大查看

ADS1015IRUGT

制造商
Texas Instruments Incorporated
描述ADC Single Delta-Sigma 3.3ksps 12-bit Serial 10-Pin X2QFN T/R Single ADC Delta-Sigma 3.3ksps 12-bit Serial 10-Pin X2QFN T/R IC ADC 12BIT I2C INTRFC 10QFN ADC 12-Bit 3.3KSPS Mux PGA Comp Osc Ref Analog to Digital Converters - ADC 12B ADC with Int MUX PGA Comp Osc and Ref IC, ADC, 12BIT, I2C, 10QFN 12-Bit ADC with Integrated MUX, PGA, Comparator, Oscillator, and Reference Texas Instruments , 16 位 ADC, 差分输入, I2C接口, 10针 X2QFN封装
分类
集成电路数据转换器模数转换器

商业参数

其他名称296-25172-2产品类别Analog to Digital Converters - ADC
标准包装数量Tape & Reel工厂包装数量250
标准封装名称QFN

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85423290
零件状态ACTIVE抗辐射加固No

电气参数

接口Serial (2-Wire, I2C)输入类型Voltage
分辨率12 Bit输入信号Single-Ended|Differential
INL/DNL（LSB）0.5LSB输入功率Single
转换器类型Temperature Measurement数据接口I²C, Serial
输入极性Bipolar位数12
基准类型Int额定电压±4.096V
数据速率（最大）3.3 KSps额定电压值�4.096
输出电流:150µA输入数量4
供电电压3 → 5.5 V供电类型Single
分辨率（位）:12bit电压基准Internal
通道数量4 Channel/2 Channel元件数量1
采样频率3.3 ksps模拟输入/输出5.5
最大额定电流CatalogADC/DAC 数量1
供电电源Single平均正向功率0.3
最大功耗0.9 mW数字供电电压5.5
内部供电电压:2V to 5.5V采样率（每秒）3.3k
差分 - 输入:输出Yes电源电压范围（典型）Not Required V
信噪比，ADC/DAC（dB）典型值Yes

机械参数

宽度1.55mm高度0.35mm
长度2.05mm重量0.0002
包装方式Tape and Reel引脚样式No Lead
端接方式:SMD安装类型Surface Mount
安装样式SMD/SMT引脚数:10
封装形式10X2QFN冷却的封装X2QFN
材料表面处理:MSL 1 - Unlimited总长度2.05(Max)
包装数量X2QFN尺寸/外形2.05 x 1.55 x 0.35mm
位数10外壳尺寸-插件0.35(Max)
供应商器件封装10-X2QFN (2x1.5)

产品信息

系列ADS1015软件SBAS473C
基本单元:1015架构Delta-Sigma
功能框图fbd_sbas473c.gif使用的IC/零件View
印刷电路板数量10A/D转换器数量4|2
输入数量及类型4 Single-Ended, Unipolar; 2 Differential, Unipolar

环境参数

测试温度-40 to 125工作温度-40°C ~ 125°C

文档与媒体

ADS1013-15
ads1015

相关型号

ADS1112IDGST

ADS1112IDGST

texas instruments

ADC Single Delta-Sigma 240sps 16-bit Serial 10-Pin VSSOP T/R Analog to Digital Converters - ADC 16-bit 240SPS 2 Ch Diff Single ADC Delta-Sigma 240sps 16-bit Serial 10-Pin VSSOP T/R IC ADC 16-BIT I2C PROGBL 10-MSOP ADS1112IDGST, 16-Bit Analogue to Digital Converter, Differential, Serial, 10-Pin MSOP, VSSOP IC, 16BIT ADC, 240SPS 2 CH, VSSOP10 A/D converter; Channels:2; 16bit; 240sps; 2.7÷5.5VDC; MSOP10 16-bit 240SPS ADC, 2 Ch. Diff/3 Single-end input, Low power Complete System in MSOP-10 A/D converter IC 16 Bit MSOP-10, ADS1112, ADS1112IDGST, Texas Instruments Texas Instruments , 16 位 ADC, 差分输入, 串行接口, 10针 MSOP封装

¥27.1800
详情

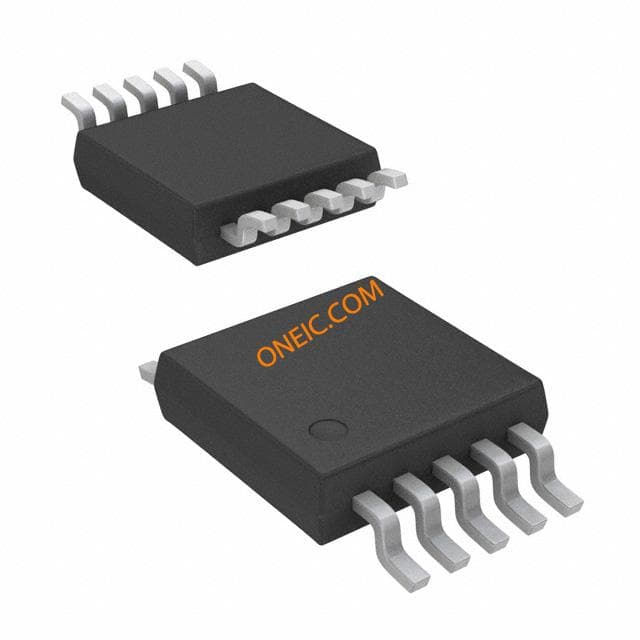

ADS1114IDGST
