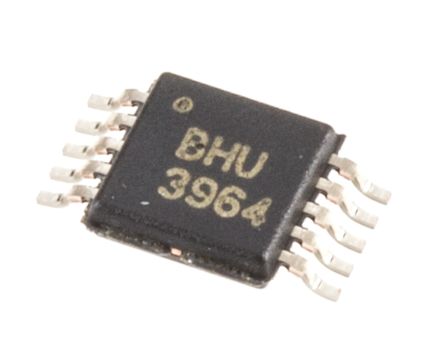

ADS1112IDGST
| 制造商 | Texas Instruments Incorporated |
| 描述 | ADC Single Delta-Sigma 240sps 16-bit Serial 10-Pin VSSOP T/R Analog to Digital Converters - ADC 16-bit 240SPS 2 Ch Diff Single ADC Delta-Sigma 240sps 16-bit Serial 10-Pin VSSOP T/R IC ADC 16-BIT I2C PROGBL 10-MSOP ADS1112IDGST, 16-Bit Analogue to Digital Converter, Differential, Serial, 10-Pin MSOP, VSSOP IC, 16BIT ADC, 240SPS 2 CH, VSSOP10 A/D converter; Channels:2; 16bit; 240sps; 2.7÷5.5VDC; MSOP10 16-bit 240SPS ADC, 2 Ch. Diff/3 Single-end input, Low power Complete System in MSOP-10 A/D converter IC 16 Bit MSOP-10, ADS1112, ADS1112IDGST, Texas Instruments Texas Instruments , 16 位 ADC, 差分输入, 串行接口, 10针 MSOP封装 |
| 分类 |
商业参数
| 其他名称 | 296-15334-2 | 产品类别 | Analog to Digital Converters - ADC |
| 标准包装数量 | Tape & Reel, Cut Tape | 工厂包装数量 | 250 |
| 标准封装名称 | SSOP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 精度 | 8LSB | 接口 | Serial (2-Wire, I2C) |
| 线性度 | �1LSB | 输入类型 | Voltage |
| 分辨率 | 16 Bit | 输入信号 | Single-Ended|Differential |
| INL/DNL（LSB） | ±0.01%FSR | 输入功率 | Single |
| 额定功率 | 1.75 W | 转换器类型 | General Purpose |
| 数据接口 | I²C, Serial | 输入极性 | Bipolar |
| 位数 | 16 | 基准类型 | Int |
| 额定电压 | ±2.048V | 数据速率（最大） | 240 SPs |
| 额定电压值 | �2.048 | 输出电流 | :240µA |
| 输入数量 | 3 | 供电电压 | 2.7 V to 5.5 V |
| 分辨率（位） | :16bit | 电压基准 | 2.048 V |
| 通道数量 | 3/2 | 元件数量 | 1 |
| 采样频率 | 240 sps | 模拟输入/输出 | 5.5 |
| 最大额定电流 | Catalog | ADC/DAC 数量 | 1 |
| 供电电源 | Single | 上升/下降时间（典型） | :1µs |
| 平均正向功率 | 0.675 | 最大功耗 | 1.75 mW |
| 差分非线性 | ±1LSB | 数字供电电压 | 5.5 |
| 内部供电电压 | :2V to 5.5V | 采样率（每秒） | 15 ~ 240 |
| 差分 - 输入:输出 | Yes | 电源电压范围（典型） | Not Required V |
| 信噪比，ADC/DAC（dB）典型值 | Yes | ||
机械参数
| 宽度 | 3mm | 高度 | 1.02mm |
| 长度 | 3mm | 重量 | 0.000175 |
| 包装方式 | Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :10 |
| 封装形式 | 10VSSOP | 冷却的封装 | MSOP, VSSOP |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 3.1(Max) |
| 包装数量 | VSSOP | 尺寸/外形 | 3 x 3 x 1.02mm |
| 位数 | 10 | 外壳尺寸-插件 | 0.95(Max) |
| 供应商器件封装 | 10-VSSOP | ||
产品信息
| SPG | 250 | 类型 | A/D converter |
| 系列 | ADS1112 | 产品特性 | differential |
| 软件 | SBAS282D | 基本单元 | :1112 |
| 架构 | Delta-Sigma | 单元数量 | 1 |
| 功能框图 | fbd_sbas282d.gif | 使用的IC/零件 | View |
| 印刷电路板数量 | 10 | A/D转换器数量 | 3|2 |
| 输入数量及类型 | 3 Single-Ended, Unipolar; 2 Differential, Bipolar | ||
