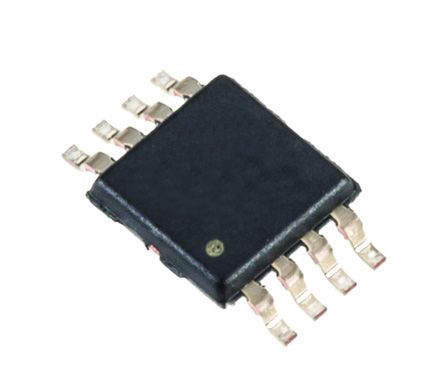

DAC8560IADGKT
| 制造商 | Texas Instruments Incorporated |
| 描述 | DAC 1-CH Resistor-String 16-bit 8-Pin VSSOP T/R Digital to Analog Converters - DAC 16-Bit Ultra-Low Glitch Volt Out DAC IC DAC 16BIT W/2.5V REF 8VSSOP DAC, 16BIT, 200KSPS, MSOP-8 16-Bit, Ultra-Low Glitch, Voltage Output DAC with 2.5V, 2ppm/℃ Internal Reference Texas Instruments , 16 位 DAC, SPI接口, 8针 VSSOP封装 |
| 分类 |
商业参数
| 其他名称 | 296-21385-2 | 产品类别 | Digital to Analog Converters - DAC |
| 标准包装数量 | Cut Tape | 工厂包装数量 | 250 |
| 标准封装名称 | SSOP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 接口 | Serial (3-Wire, SPI, QSPI, Microwire) | 信噪比 | 88(Typ) dB |
| 满量程 | ±0.5 %FSR | 输入类型 | :Serial |
| 分辨率 | 16 Bit | 输出类型 | Voltage |
| 输出范围 | 0 | INL/DNL（LSB） | ±12 LSB |
| 输入功率 | Single | 建立时间 | 12(Typ) us |
| 转换器类型 | General Purpose | 数据接口 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ |
| 位数 | 16 | 基准类型 | Ext Int |
| 数据速率（最大） | 200 Ksps | DAC数量 | 1 |
| 输出电流 | :530µA | 供电电压 | 5.5 V |
| 输出数量 | 1 | 供电类型 | Single |
| 分辨率（位） | :16bit | 电压基准 | Internal or External |
| 通道数量 | 1 | 采样频率 | :200kSPS |
| 最大额定电流 | Catalog | 供电电源 | Single Supply |
| 增益带宽积 | 0.2 | 平均正向功率 | 2.6 |
| 输出数量与类型 | 1 Voltage, Unipolar; 1 Voltage, Bipolar | 采样率（每秒） | 0.2 |
| 电源电压范围（典型） | Not Required V | ||
机械参数
| 宽度 | 3.1(Max) | 重量 | 0.000074 |
| 包装方式 | Reel | 引脚样式 | Gull-wing |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :8 | 封装形式 | 8VSSOP |
| 冷却的封装 | VSSOP | 材料表面处理 | :MSL 2 - 1 year |
| 总长度 | 3.1(Max) | 包装数量 | VSSOP |
| 位数 | 8 | 外壳尺寸-插件 | 0.95(Max) |
| 供应商器件封装 | 8-VSSOP | ||
产品信息
| 系列 | DAC8560 | 软件 | SLAS464B |
| 架构 | Resistor-String | 图案编号 | Y |
| 功能框图 | fbd_slas464b.gif | 使用的IC/零件 | View |
| 印刷电路板数量 | 8 | A/D转换器数量 | 1 |
环境参数
| 测试温度 | -40 to 105 | 工作温度 | -40 to 105 °C |
| 结工作温度 | 105C | ||
