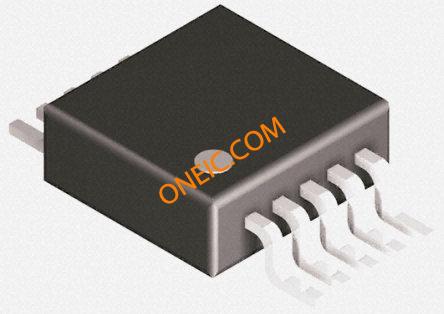

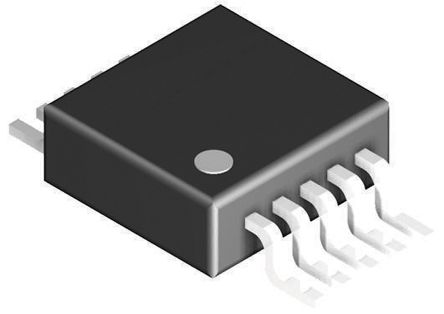

ADS1113IDGST
| 制造商 | Texas Instruments Incorporated |
| 描述 | ADC Single Delta-Sigma 860sps 16-bit Serial 10-Pin VSSOP T/R Analog to Digital Converters - ADC 16B ADC w/ Int MUX Oscillator & Ref Single ADC Delta-Sigma 860sps 16-bit Serial 10-Pin VSSOP T/R IC ADC 16-BIT I2C PROGBL 10-MSOP ADS1113IDGST, 16-Bit Analogue to Digital Converter, Differential, Serial, 10-Pin VSSOP ADC Single Delta-Sigma 0.86KSPS 16-Bit Serial 10-Pin MSOP T/R IC, ADC 16BIT 860SPS LP 10MSOP 16-Bit ADC with Integrated MUX, Oscillator, and Reference Texas Instruments , 16 位 ADC, 差分输入, 串行接口, 10针 VSSOP封装 |
| 分类 |
商业参数
| 其他名称 | 296-24930-2 | 产品类别 | Analog to Digital Converters - ADC |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 250 |
| 标准封装名称 | SSOP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423290 |
| 零件状态 | ACTIVE | ||
电气参数
| 接口 | Serial (2-Wire, I2C) | 输入类型 | Voltage |
| 分辨率 | 16 Bit | 输入信号 | Single-Ended|Differential |
| INL/DNL（LSB） | 1LSB | 转换器类型 | General Purpose |
| 数据接口 | I²C, Serial | 输入极性 | Bipolar |
| 位数 | 16 | 基准类型 | Int |
| 额定电压 | ±4.096V | 数据速率（最大） | 860 SPs |
| 输出电流 | :150µA | 输入数量 | 1 |
| 供电电压 | 2 V to 5.5 V | 分辨率（位） | :16bit |
| 电压基准 | Internal | 通道数量 | 1 |
| 采样频率 | 860 sps | 模拟输入/输出 | 5.5 |
| 最大额定电流 | Catalog | ADC/DAC 数量 | 1 |
| 供电电源 | Single | 平均正向功率 | 0.3 |
| 最大功耗 | 0.5 mW | 数字供电电压 | 5.5 |
| 内部供电电压 | :2V to 5.5V | 采样率（每秒） | 860 |
| 差分 - 输入:输出 | Yes | 信噪比，ADC/DAC（dB）典型值 | Yes |
机械参数
| 宽度 | 3mm | 高度 | 1.02mm |
| 长度 | 3mm | 重量 | 0.0001 |
| 包装方式 | Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :10 |
| 封装形式 | 10VSSOP | 冷却的封装 | VSSOP |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 3.1(Max) |
| 包装数量 | VSSOP | 尺寸/外形 | 3 x 3 x 1.02mm |
| 位数 | 10 | 外壳尺寸-插件 | 0.95(Max) |
| 供应商器件封装 | 10-VSSOP | ||
产品信息
| 系列 | ADS1113 | 软件 | SBAS444B |
| 基本单元 | :1113 | 架构 | Delta-Sigma |
| 功能框图 | fbd_sbas444b.gif | 使用的IC/零件 | View |
| 印刷电路板数量 | 10 | A/D转换器数量 | 2|1 |
| 输入数量及类型 | 1 Single-Ended, Unipolar; 1 Differential, Unipolar | ||
