点击放大查看

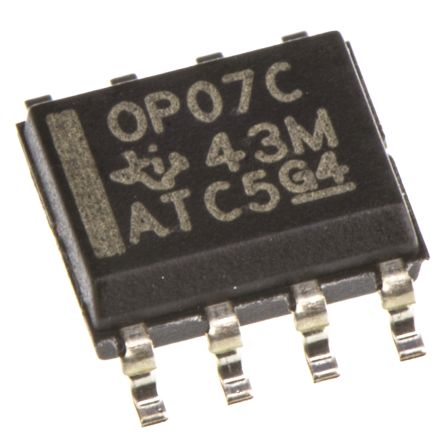

OP07CD
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Single GP ±18V 8-Pin SOIC Tube IC OPAMP GP 600KHZ 8SOIC OP07CD, Precision Operational Amplifier 0.6MHz, 8-Pin SOIC Operational Amplifiers - Op Amps Low Offset Volt Prec OP Amp Single GP �18V 8-Pin SOIC Tube IC, OP AMP, LOW OFFSET, SMD, SOIC8 Operational amplifier; Channels:1; SO8 Low-Offset Voltage Operational Amplifier Operational Amplifier Single 500 kHz SO-8, OP07, OP07CD, Texas Instruments Texas Instruments 运算放大器, 600kHz, 8针 SOIC Precision Amplifiers Low Offset Volt Prec |
| 分类 |
商业参数
| 其他名称 | 296-12852-5 | 产品类别 | Operational Amplifiers - Op Amps |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 75 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423300 |
| 零件状态 | :07 | 抗辐射加固 | No |
电气参数
| 增益 | 112.04 dB | 压摆率 | 0.3@±15V V/us |
| 1kHz噪声电压 | 9.8 | 输出类型 | No |
| 失调漂移 | 0.5 | 输入功率 | Dual |
| 晶体管类型 | :Low Noise | 共模抑制比、电源抑制比（典型） | 100 dB |
| 输出电流 | 5 mA | 供电电压 | ±3 V |
| 供电类型 | Dual | 通道数量 | 1 |
| 元件数量 | 1 | 输入偏置电流 | 1.8nA |
| 最大额定电流 | Catalog | ADC/DAC 数量 | :1 |
| 最小输入电压 | 60µV | 增益带宽积 | 0.6 MHz |
| 轨到轨工作 | No | 静态电流 (Iq) | 5 |
| 输入偏置电流（最大） | 0.007@±15V uA | 输入失调电流（最大） | 0.006@±15V |
| 25°C失调电压 | 0.15 | 输入噪声电流密度 | 0.35@±15V pA/rtHz |
| 输入噪声电压密度 | 10.5@±15V nV/rtHz | 电源电压范围（典型） | �5/�9/�12/�15 V |
| 输入失调电压（最大） | 0.15@±15V mV | 电压输出差（典型值）@ 距离 | 112.04 dB |
机械参数
| 宽度 | 4(Max) | 重量 | 0.002561 oz |
| 带宽 | :600kHz | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 5(Max) |
| 包装数量 | SOIC | 位数 | 8 |
| 外壳尺寸-插件 | 1.5(Max) | 供应商器件封装 | 8-SOIC |
产品信息
| SPG | 2500 | 类型 | General Purpose Amplifier |
| 系列 | OP07C | 关断 | No |
| 软件 | SLOS099G | 基本单元 | :7 |
| 技术 | Bipolar | 制造商全称 | Precision Amplifier |
| 放大器类型 | General Purpose | 单元数量 | 1 |
| 功能框图 | alt_slos099g.gif | 电路数 | 1 |
| 使用的IC/零件 | View | 印刷电路板数量 | 8 |
环境参数
| 温度范围 | :Commercial | 测试温度 | 0 to 70 |
| 工作温度 | 0 to 70 °C | ||
