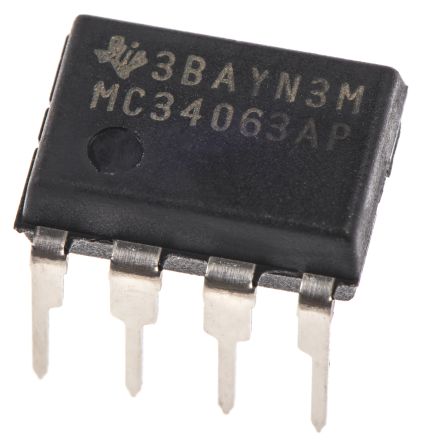

MC34063AP
| 制造商 | |
| 描述 | 1.5 A BOOST/BUCK/INVERTING SW REG A PEAK BOOST/BUCK/INVERTING SWITCHING REGULATORS Conv DC-DC Single Inv/Step Up/Step Down 3V to 40V 8-Pin PDIP T/R IC REG BUCK BOOST INV ADJ 8PDIP MC34063AP, DC-DC Converter, 1.55 to 40V, Step-Down/Up, 8-Pin PDIP Voltage Regulators - Switching Regulators 1.5-A Boost/Buck Inverting Swtch Reg IC, DC/DC CONTROLLER, 34063, DIP8 1.5-A Boost/Buck/Inverting Switching Regulator Texas Instruments 直流-直流转换器, 降压/升压, 1.5A, 3 → 40 V输入, 1.55 → 40 V输出, 8针 PDIP封装 Switching Voltage Regulators 1.5-A Boost/Buck Inverting Swtch Reg |
| 分类 |
商业参数
| 其他名称 | 296-17766-5 | 产品类别 | Voltage Regulators - Switching Regulators |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 50 |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | :34063 | 抗辐射加固 | No |
电气参数
| 频率 | :100kHz | 输出类型 | Adjustable |
| 转换器类型 | Step Down, Step Up | 稳压器类型 | :Boost-Buck Regulator |
| 额定电压 | 40 V | 输出电流 | 1.5A |
| 供电电压 | :3V | 输出数量 | 1 |
| 稳压器拓扑 | Step Up/Step Down | 开关电流 | 1.5 |
| 开关稳压器 | Yes | 最大额定电流 | Catalog |
| 开关频率 | 100kHz | 同步整流 | No |
| 最小输入电压 | 1.55 V ~ 40 V | 静态电流 (Iq) | 4 |
| 直流输入电压（最小） | 3 V | 输入偏置电流（最大） | :4mA |
机械参数
| 宽度 | 6.35mm | 高度 | 4.57mm |
| 长度 | 9.81mm | 重量 | 0.015535 oz |
| 包装方式 | Tape and Reel | 引脚样式 | Through Hole |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :8 |
| 封装形式 | 8PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 10.16(Max) |
| 包装数量 | PDIP | 尺寸/外形 | 9.81 x 6.35 x 4.57mm |
| 位数 | 8 | 外壳尺寸-插件 | 5.08(Max) - 0.51(Min) |
| 供应商器件封装 | 8-PDIP | ||
产品信息
| 类型 | Inverting|Step Up|Step Down | 系列 | MC34063A |
| 软件 | SLLS636N | 拓扑 | Inverting Buck-Boost |
| 基本单元 | :34063 | 控制方式 | Constant on-time (COT) |
| 图案编号 | Y | 使用的IC/零件 | View |
| 印刷电路板数量 | 8 | ||
环境参数
| 温度范围 | :Commercial | 测试温度 | 0 to 70 |
| 工作温度 | 0°C ~ 70°C | 结工作温度 | 70C |
文档与媒体
相关型号
MC34063ACN
stmicroelectronics
