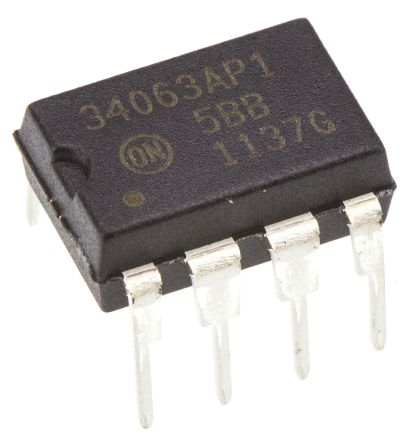

MC34063AP1G
| 制造商 | |
| 描述 | DC DC Cntrlr Single-OUT Step Up/Step Down 3V to 40V Input 8-Pin PDIP Rail Conv DC-DC Single Inv/Step Up/Step Down 3V to 40V 8-Pin PDIP Tube IC REG BUCK BOOST INV ADJ 8DIP MC34063AP1G, DC-DC Converter, 1.25 to 40V, Step-Down/Up, 8-Pin PDIP Voltage Regulators - Switching Regulators 40V 1.5A Buck/Boost/Inverting Conv DC-DC Single-OUT Non-Inv/Inv/Step Up/Step Down 8-Pin PDIP Rail IC, DC/DC CONTROLLER, 34063, DIP8 MC34063AP1G Voltage stabiliser; switched mode, adjustable; 1.25÷35V; 1.5A Switching Regulator 1.5 A DIL-8, MC34063AP1G, ON Semiconductor ON Semiconductor 直流-直流转换器, 降压/升压, 1.5A, 3 → 40 V输入, 1.25 → 40 V输出, 8针 PDIP封装 Switching Voltage Regulators 40V 1.5A Buck/Boost/Inverting |
| 分类 |
商业参数
| 其他名称 | MC34063AP1GOS | 标准包装规格 | 50 |
| 产品类别 | Voltage Regulators - Switching Regulators | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 50 | 标准封装名称 | PDIP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | :34063 | ||
电气参数
| 频率 | :100kHz | 输出类型 | Adjustable |
| 转换器类型 | Step Down, Step Up | 稳压器类型 | :Boost-Buck/Inverting |
| 额定电压 | 1.25 to 40 V | 输出电流 | 1.5(Max) A |
| 供电电压 | 40(Max) V | 输出数量 | 1 |
| 供电类型 | :DC / DC Converter | 开关稳压器 | Yes |
| 开关频率 | 100kHz | 同步整流 | No |
| 最小输入电压 | 1.25 V ~ 40 V | 电压输出差（典型值）@ 距离 | :1.25V |
机械参数
| 宽度 | 6.6mm | 高度 | 3.44mm |
| 长度 | 10.16mm | 重量 | 0.00051 |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :8 |
| 封装形式 | 8PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 总长度 | 9.27 |
| 包装数量 | PDIP | 尺寸/外形 | 10.16 x 6.6 x 3.44mm |
| 位数 | 8 | 外壳尺寸-插件 | 5.33(Max) - 0.38(Min) |
| 供应商器件封装 | 8-PDIP | ||
产品信息
| SPG | 50 | 类型 | Step Up/Step Down |
| 基本单元 | :34063 | 单元数量 | 1 |
| 印刷电路板数量 | 8 | ||
环境参数
| 温度范围 | :Commercial | 工作温度 | 0 to 70 °C |
文档与媒体
相关型号
MC34063ECN
stmicroelectronics
DC DC Cntrlr Single-OUT Step Up/Step Down 3V to 40V Input 8-Pin PDIP Tube DC-DC CONVERTER IC REG BUCK BOOST INV ADJ 8DIP Voltage Regulators - Switching Regulators 3.0 to 40V DC-DC Cnv IC, DC/DC CONTROLLER, 34063, DIP8 STMicroelectronics 直流-直流转换器, 降压/升压, 1.5A, 3 → 40 V输入, 42 kHz, 8针 PDIP封装 Switching Voltage Regulators 3.0 to 40V DC-DC Cnv
MC34063ACN
stmicroelectronics
DC DC Cntrlr Single-OUT Step Up/Step Down 3V to 40V Input 8-Pin PDIP Tube DC-DC CONVERTER IC REG BUCK BOOST INV ADJ 8DIP MC34063ACN, DC-DC Converter, Step Down, 8-Pin PDIP Voltage Regulators - Switching Regulators 3.0 to 40V DC-DC Cnv IC, DC-DC CONV, 100KHZ, DIP-8 I.C.MC34063ACN DC-DC converter; Uin:3÷40V; Uout:1.25÷38V; 1.5A; DIP8 STMicroelectronics 直流-直流转换器, 降压, 3 → 40 V输入, 8针 PDIP封装 Switching Voltage Regulators 3.0 to 40V DC-DC Cnv
MC34063APE4
texas instruments
A PEAK BOOST/BUCK/INVERTING SWITCHING REGULATORS IC REG BUCK BOOST INV ADJ 8PDIP Voltage Regulators - Switching Regulators 1.5-A Boost/Buck Inverting Swtch Reg Conv DC-DC Single Inv/Step Up/Step Down 3V to 40V 8-Pin PDIP T/R IC, DC/DC CONTROLLER, 34063, DIP8 1.5-A Boost/Buck/Inverting Switching Regulator Switching Voltage Regulators 1.5-A Boost/Buck Inverting Swtch Reg
MC34063AP1G
on semiconductor
DC DC Cntrlr Single-OUT Step Up/Step Down 3V to 40V Input 8-Pin PDIP Rail Conv DC-DC Single Inv/Step Up/Step Down 3V to 40V 8-Pin PDIP Tube IC REG BUCK BOOST INV ADJ 8DIP MC34063AP1G, DC-DC Converter, 1.25 to 40V, Step-Down/Up, 8-Pin PDIP Voltage Regulators - Switching Regulators 40V 1.5A Buck/Boost/Inverting Conv DC-DC Single-OUT Non-Inv/Inv/Step Up/Step Down 8-Pin PDIP Rail IC, DC/DC CONTROLLER, 34063, DIP8 MC34063AP1G Voltage stabiliser; switched mode, adjustable; 1.25÷35V; 1.5A Switching Regulator 1.5 A DIL-8, MC34063AP1G, ON Semiconductor ON Semiconductor 直流-直流转换器, 降压/升压, 1.5A, 3 → 40 V输入, 1.25 → 40 V输出, 8针 PDIP封装 Switching Voltage Regulators 40V 1.5A Buck/Boost/Inverting
MC34063AP
onsemi
IC REG BCK BST INV ADJ 1.5A 8DIP
