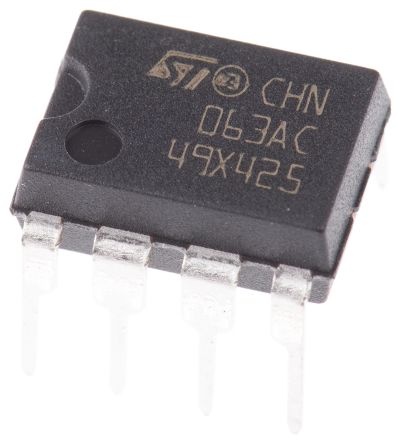

MC34063ACN
| 制造商 | |
| 描述 | DC DC Cntrlr Single-OUT Step Up/Step Down 3V to 40V Input 8-Pin PDIP Tube DC-DC CONVERTER IC REG BUCK BOOST INV ADJ 8DIP MC34063ACN, DC-DC Converter, Step Down, 8-Pin PDIP Voltage Regulators - Switching Regulators 3.0 to 40V DC-DC Cnv IC, DC-DC CONV, 100KHZ, DIP-8 I.C.MC34063ACN DC-DC converter; Uin:3÷40V; Uout:1.25÷38V; 1.5A; DIP8 STMicroelectronics 直流-直流转换器, 降压, 3 → 40 V输入, 8针 PDIP封装 Switching Voltage Regulators 3.0 to 40V DC-DC Cnv |
| 分类 |
商业参数
| 最小起订量 | 2000 | 单位包装 | 50 |
| 产品类别 | Voltage Regulators - Switching Regulators | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 50 | 标准封装名称 | PDIP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | :34063 | 抗辐射加固 | No |
电气参数
| 频率 | :100kHz | 效率 | 89 % |
| 输出类型 | Adjustable | 额定功率 | 625mW |
| 转换器类型 | Step Down | 稳压器类型 | :Boost-Buck/Inverting |
| 额定电压 | 3 to 40 V | 输出电流 | 1.5(Min) A |
| 供电电压 | 50(Max) V | 输出数量 | 1 |
| 稳压器拓扑 | Step Down | 开关稳压器 | No |
| 开关频率 | 100kHz | 同步整流 | No |
| 最小输入电压 | 1.25 V ~ 38 V | 输出电流（典型） | 1.5A |
| 直流输入电压（最小） | 3 V | 供电电压 (Vcc/Vdd) | :50V |
| 输出电压1（可调范围） | :38V | 电压输出差（典型值）@ 距离 | :1.25V |
机械参数
| 宽度 | 7.1mm | 高度 | 3.3mm |
| 长度 | 9.8mm | 重量 | 0.00047 |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :8 |
| 封装形式 | 8PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 总长度 | 9.8(Max) |
| 包装数量 | PDIP | 尺寸/外形 | 9.8 x 7.1 x 3.3mm |
| 位数 | 8 | 外壳尺寸-插件 | 3.3 |
| 供应商器件封装 | 8-DIP | ||
产品信息
| SPG | 300 | 类型 | Step Up/Step Down |
| 单元数量 | 1 | 印刷电路板数量 | 8 |
环境参数
| 温度范围 | :Commercial | 工作温度 | 0 to 70 °C |
| 结工作温度 | 70C | ||
