点击放大查看

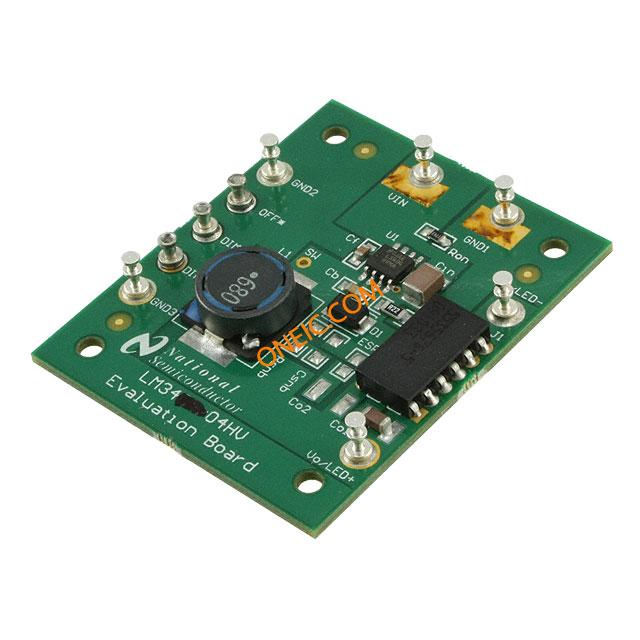

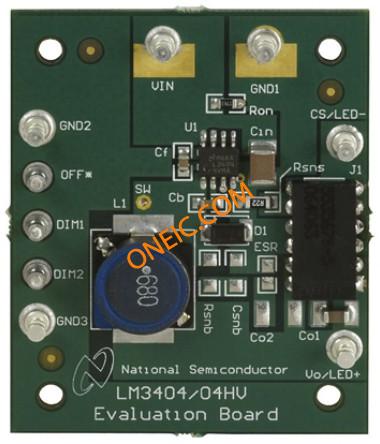

LM3404HVEVAL/NOPB
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Kit For 1.0A Constant Current Buck Regulator For Driving High Power LEDs LED Lighting Development Tools LM3404HV EVAL BOARD BOARD EVALUATION LM3404HV LM3404HVEVAL/NOPB, Development Kit, Power Management, LED Driver Evaluation Board Texas Instruments 电源管理 开发套件 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 产品类别 | LED Lighting Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 核心类型 | LM3404HV | 输出电流 | 1 A |
| 供电电压 | 6 V to 75 V | 最大额定电流 | 1A |
| 最小输入电压 | 4V | 输出电流/通道 | 1A |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | Dimmable | 技术 | Power Management |
| 套件内容 | LED Driver Evaluation Board | 主要用途 | Dimmable |
| 卡标准 | Development Kit | 输出及类型 | 1, Non-Isolated |
| 射频系列/标准 | LM3404 | 使用的IC/零件 | LM3404 |
| 适用产品/相关产品 | High Power High Brightness LEDs | ||
环境参数
| 机械寿命 | New At Mouser | ||
文档与媒体
相关型号
LM3404HVMR/NOPB
texas instruments
LED DRVR 1Segment 9V/12V/15V/18V/24V 8-Pin PSOP EP Tube LED Lighting Drivers 1.0A CONSTANT CRNT BUCK REG IC LED DRVR HP CONST CURR 8SOPWR LED Driver 1-Seg 9/12/15/18/24V PSOP8 EP Driver; LED controller; 1A; 7V; Channels:1; SOP8 1.0A Constant Current Buck Regulator for High Power LED Drivers Texas Instruments 恒流 LED 驱动器, 6 → 75 V 直流 0.001mA, 8针 HSOP

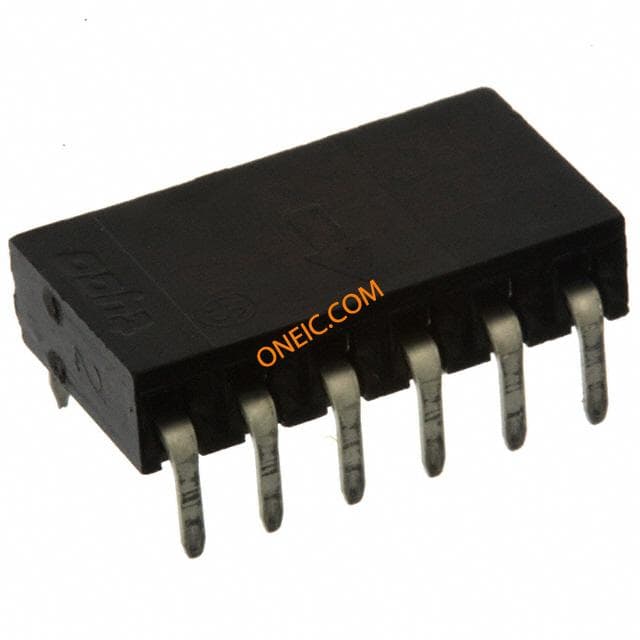

5535676-5
