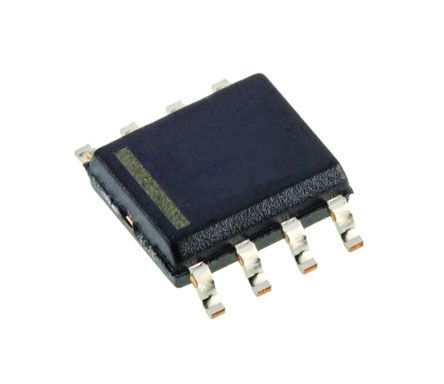

LM3404HVMR/NOPB
| 制造商 | Texas Instruments Incorporated |
| 描述 | LED DRVR 1Segment 9V/12V/15V/18V/24V 8-Pin PSOP EP Tube LED Lighting Drivers 1.0A CONSTANT CRNT BUCK REG IC LED DRVR HP CONST CURR 8SOPWR LED Driver 1-Seg 9/12/15/18/24V PSOP8 EP Driver; LED controller; 1A; 7V; Channels:1; SOP8 1.0A Constant Current Buck Regulator for High Power LED Drivers Texas Instruments 恒流 LED 驱动器, 6 → 75 V 直流 0.001mA, 8针 HSOP |
| 分类 |
商业参数
| 其他名称 | LM3404HVMRNOPB | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 95 | ||
合规参数
| RoHS | RoHS Compliant | 零件状态 | ACTIVE |
| 抗辐射加固 | No | ||
电气参数
| 输出端 | 1 | 调光方式 | PWM |
| 频率 | 1MHz | 输出类型 | Constant Current |
| 额定电压 | 6 V to 75 V | 输出电流 | 1 A |
| 供电电流 | 0.9 mA | 供电电压 | 6 to 75 V |
| 输出数量 | 1 | 电压基准 | 0.2 |
| 通道数量 | 1 | 最大额定电流 | Catalog |
| 开关频率 | 1000 | 最小输入电压 | 73V |
| 输出电压（最大） | 73V | 最小供电电压 | 6 V |
| 静态电流 (Iq) | 0.625 | 直流输入电压（最大） | DC |
| 输出高/低电流 | 1 A | 最大恒流负载 | Yes |
| 输出电压（最小/固定） | 0.2V | ||
机械参数
| 高度 | 1.47 mm | 长度 | 4.93 mm |
| 重量 | 1.35 g | 包装方式 | Tube |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 封装形式 | 8PSOP EP | 冷却的封装 | PSOP EP |
| 包装数量 | 95 | 触点数 | 8 |
| 位数 | 8 | 供应商器件封装 | 8-SO PowerPad |
产品信息
| SPG | 95 | 备注 | Controlled-ON Time (hysteretic) |
| 类型 | White LED | 系列 | LM3404HV |
| 产品特性 | Adjustable Switch Frequency Enable/Shutdown Thermal Shutdown Integrated Switch | 软件 | SNVS465F |
| 拓扑 | PWM, Step-Down (Buck) | 应用 | Automotive Lighting, Constant Current Source, General Lighting, Industrial Lighting |
| 制造商全称 | Texas Instruments | 单元数量 | 1 |
| 功能框图 | fbd_snvs465f.gif | 段数 | 1 |
| 使用的IC/零件 | LED controller | 内部连接 | Yes |
| 应用细节 | Automotive Lighting, Constant Current Source, General Lighting, Industrial Lighting | ||
环境参数
| 机械寿命 | New At Mouser | 测试温度 | -40 to 125 |
| 工作温度 | + 125 C | 结工作温度 | 125C |
文档与媒体
