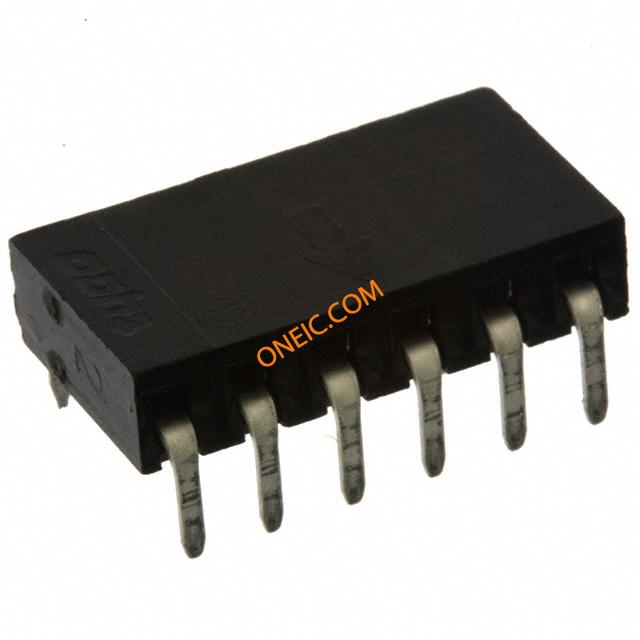

点击放大查看

5535676-5

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 6 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Receptacles CONN RECEPT 6POS .100 RT/ANG AU Headers & Wire Housings REC 1X06P R/A T/H Conn Socket Strip SKT 6 POS 2.54mm Solder RA Thru-Hole Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONN, RECEPTACLE, 6WAY, 1ROW AMPMODU MOD II 6 Position Single Row 2.54 mm Pitch Right Angle Receptacle 06 MODII HORZ SR CE 100CL
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	零件号别名	5-535676-5
产品类别	Headers & Wire Housings	标准包装数量	Rail / Tube
工厂包装数量	37

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

电气参数

接触电阻

12 mohm

最大额定电流

2 A

机械参数

颜色	Black	深度	8.13 mm
间距	2.54 mm	高度	3.48 mm
重量	1	包装方式	Tube
端接方式	Solder	触头类型	Female Socket
柱间距	:7.87mm	外壳颜色	Black
安装类型	Through Hole, Right Angle	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	Through Hole
排数	1	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	总长度	15.24 mm
端接样式	Through Hole	触点数	6
接触件端接	:Through Hole Right Angle	位数	6
接触镀层厚度	30µin (0.76µm)

产品信息

类型	Socket Strip	连接器性别	SKT
系列	AMPMODU MOD II	产品子类型	Receptacles / Sockets - PCB
加载位置数	All

环境参数

工作温度

- 55 C to + 125 C

文档与媒体

在线文档

5535676-5

在线文档

5535676-5?RQPN=5535676-5
