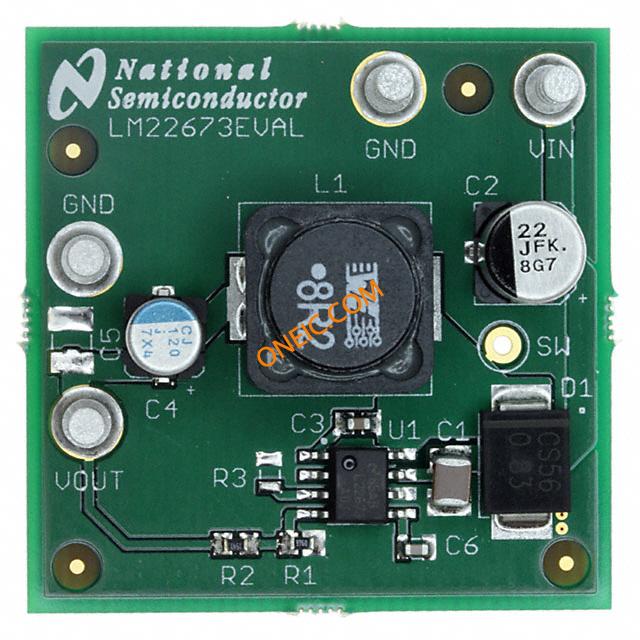

LM22673EVAL/NOPB
| 制造商 | Texas Instruments Incorporated |
| 描述 | LM22673 EVAL BOARD Power Management IC Development Tools LM22673 EVAL BOARD BOARD EVALUATION FOR LM22673 EVAL BOARD, LM22673 3.3V, 3A REGULATOR |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85423990 |
电气参数
| 额定电压 | 4.5 V to 42 V | 输出电流 | 3 A |
| 元件数量 | :LM22673 | 稳压器拓扑 | Buck |
| 开关频率 | 500kHz | 最小输入电压 | 3.3V |
机械参数
| 重量 | 0 | 电路板厚度 | Fully Populated |
| 尺寸/外形 | 1.5 in x 1.5 in | ||
产品信息
| 类型 | DC/DC Converters, Regulators & Controllers | 内容 | Board |
| 功能 | The LM22673 evaluation board is configured to provide an output voltage of 3.3V up to 3A load current with an input voltage range of 4.5V to 42V | 套件类型 | :Power Management |
| 套件内容 | :Evaluation Board for LM22673E | 主要用途 | DC/DC, Step Down |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | LM22673 |
| 使用的IC/零件 | LM22673 | 适用产品/相关产品 | LM22673 |
环境参数
| 机械寿命 | New At Mouser | 工作温度 | + 50 C |
文档与媒体
相关型号
LM22673TJE-5.0/NOPB
texas instruments
Conv DC-DC Single Inv/Step Down 4.5V to 42V 7-Pin Thin TO-263 EP T/R DC/DC Switching Converters Conv DC-DC Single Inv/Step Down 4.5V to 42V 8-Pin(7+Tab) TO-263 T/R IC REG BUCK 5V 3A TO263-7 LM22673TJE-5.0/NOPB, DC-DC Converter, 5V Step Down, 0.5MHz, 7-Pin TO-263 Voltage Regulators - Switching Regulators 3A SD Vtg Reg IC, SW REG 3A SIMPLE SWITCHER®, Step-Down Voltage Reg. with Adjustable Soft-Start and Current Limit Texas Instruments 直流-直流转换器, 降压, 3A, 4.5 → 42 V输入, 0.5 MHz, 7针 TO-263封装 Switching Voltage Regulators 3A SD Vtg Reg

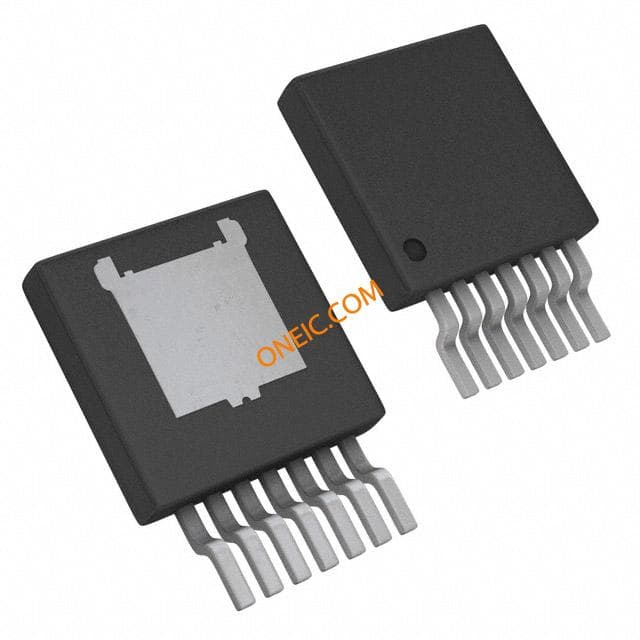

LM22673TJ-5.0/NOPB
