点击放大查看
EKK-LM4F232
| 制造商 | Texas Instruments Incorporated |
| 描述 | Stellaris LM4F232 Evaluation Kit For Keil RealView MDK-ARM Development Boards & Kits - ARM EKK-LM4F232 EVAL KIT KIT EVAL KEIL FOR LM4F233 LM4F232, USB, CAN, KEIL, EVAL KIT |
| 分类 |
商业参数
| 产品 | Evaluation Kits | 产品类别 | Development Boards & Kits - ARM |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | RoHS Not Applicable | 海关税号 | 85423190 |
电气参数
| 核心类型 | ARM Cortex M4 | 接口 | USB |
| 位数 | :32 bit | 供电电压 | 4.75 V to 5.25 V |
| 元件数量 | :LM4F232 | ||
机械参数
| 重量 | 0.25 | 核心数/总线宽度 | 12 bit |
产品信息
| 类型 | Development Kit | 内容 | Board, Battery, Cables, CD, Documentation, Software |
| 产品特性 | Stellaris LM4F232 Evaluation Board User's Manual http://www.ti.com/lit/ug/spmu272/spmu272.pdf | 技术 | Microcontroller |

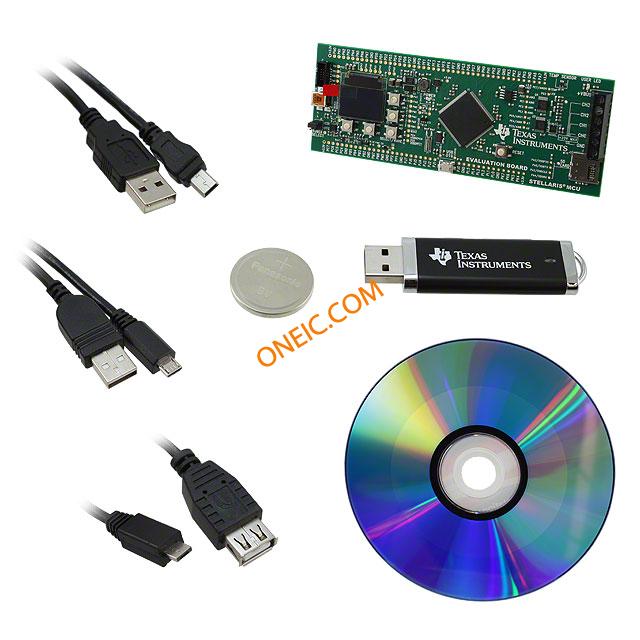

| 套件内容 | :Evaluation Board, Cables, USB Flash Drive, Lithium Coin Cell Battery, CD, Complete Documentation | 制造商全称 | :Stellaris |
| 工具类型/特性 | LM4F232H5QD | 芯片组制造商 | :Texas Instruments |
| 适用产品/相关产品 | LM4F230 | ||
环境参数
| 机械寿命 | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | ||
