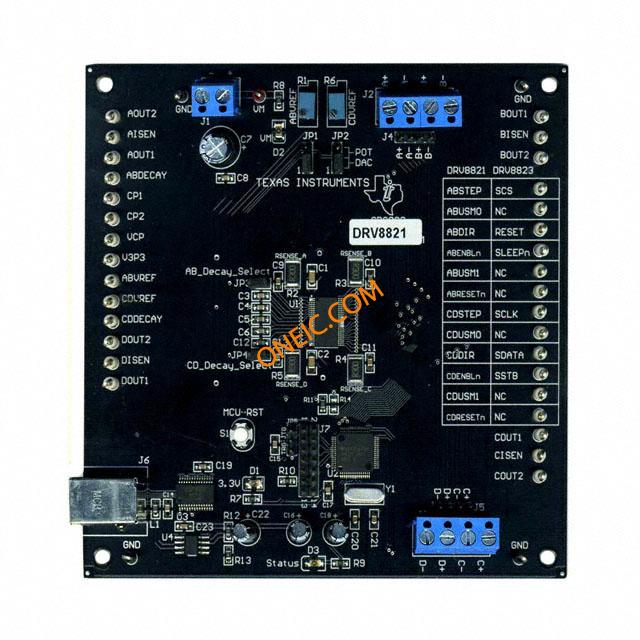

DRV8821EVM
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Module For Dual Stepper Motor Controller/Driver Power Management IC Development Tools DRV8821 Eval Mod EVAL MODULE FOR DRV8821 DRV8821, DUAL STEPPER MOTOR CONTROLLER, EVAL MOD |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | No | 欧盟RoHS | RoHS Not Applicable |
| 海关税号 | 00000000 | ||
电气参数
| 核心类型 | :- | 接口 | USB |
| 额定电压 | 8 V to 32 V | 元件数量 | :DRV8821 |
机械参数
| 重量 | 0 | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | No | 套件类型 | :Power Management - Motor Control |
| 技术 | Motion Motor Control | 主要用途 | Power Management, Motor Control |
| 工具类型/特性 | DRV8821 | 主要特性 | Dual Full-Bridge (H-Bridge) Driver with PWM Current Controller |
| 射频系列/标准 | DRV8821 | 使用的IC/零件 | DRV8821 |
| 芯片组制造商 | :Texas Instruments | 次要特性 | 8 V ~ 32 V Supply |
| 应用细节 | :Stepper Motor | ||
环境参数
| 工作温度 | + 85 C | ||
