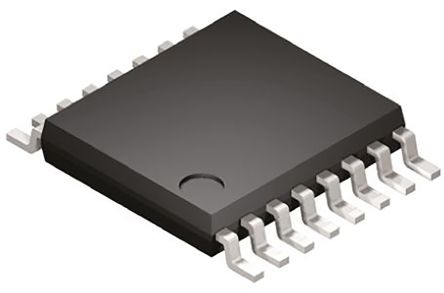

DAC8564IAPW

制造商	Texas Instruments Incorporated
描述	DAC 4-CH Resistor-String 16-bit 16-Pin TSSOP Tube IC DAC 16BIT QUAD-CH 16-TSSOP Digital to Analog Converters - DAC 16B Quad Ch Ultra-Lo Glitch Vltg Output IC, DAC, 16BIT, 200KSPS, TSSOP-16 IC, DAC 16BIT QUAD-CH 16-TSSOP 16-Bit, Quad Channel, Ultra-Low Glitch, Voltage Output DAC with 2.5V, 2ppm/°C Internal Reference Texas Instruments 四 16 位 DAC, SPI接口, 16针 TSSOP封装
分类	集成电路数据转换器通用数据转换器

对参数有疑问？问 AI 助手

商业参数

其他名称	296-22920-5	产品类别	Digital to Analog Converters - DAC
标准包装数量	Rail / Tube	工厂包装数量	90
标准封装名称	TSSOP

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (16-Dec-2013)
欧盟RoHS	Compliant	海关税号	85411000
零件状态	ACTIVE	抗辐射加固	No

电气参数

接口	Serial (3-Wire, SPI, QSPI, Microwire)	信噪比	90(Typ) dB
满量程	±0.5 %FSR	输入类型	:Serial
分辨率	16 Bit	输出类型	Voltage
输出范围	0	INL/DNL（LSB）	±12 LSB
输入功率	Single	建立时间	10 us
转换器类型	General Purpose	数据接口	Serial
位数	16	基准类型	Ext Int
数据速率（最大）	200 Ksps	DAC数量	4
输出电流	:1mA	供电电压	5.5 V
失真额定值（如THD）	+/- 12 LSB	输出数量	4
供电类型	Single	分辨率（位）	:16bit
电压基准	Internal or External	通道数量	4
采样频率	:200kSPS	最大额定电流	Catalog
供电电源	Single Supply	增益带宽积	0.2
平均正向功率	3.1	数字供电电压	:1.8V to 5.5V
输出数量与类型	4 Voltage, Unipolar; 4 Voltage, Bipolar	采样率（每秒）	200k
电源电压范围（典型）	Not Required V

机械参数

宽度	4.5(Max)	重量	0.002222 oz
包装方式	Tube	引脚样式	Gull-wing
端接方式	:SMD	安装类型	Surface Mount
安装样式	SMD/SMT	引脚数	:16
封装形式	16TSSOP	冷却的封装	TSSOP
材料表面处理	:MSL 1 - Unlimited	总长度	5.1(Max)
包装数量	TSSOP	位数	16
外壳尺寸-插件	1.05(Max)	供应商器件封装	16-TSSOP

产品信息

系列	DAC8564	软件	SBAS403D
基本单元	:8564	架构	Resistor-String
图案编号	Y	功能框图	fbd_sbas403d.gif
使用的IC/零件	View	印刷电路板数量	16
A/D转换器数量	4

环境参数

测试温度	-40 to 105	工作温度	-40 to 105 °C
结工作温度	105C

文档与媒体

PDF 文档

Copper Bond Wire Revision A 04/Dec/2013

PDF 文档

PDF 文档

PDF 文档

在线文档

在线文档
