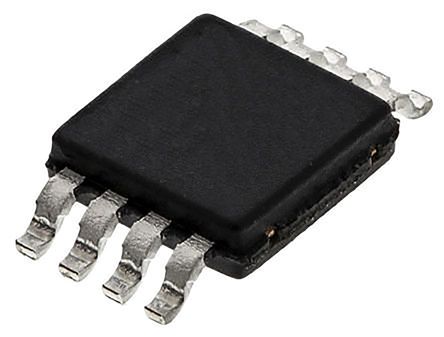

DAC8550IBDGKT
| 制造商 | Texas Instruments Incorporated |
| 描述 | DAC 1-CH Resistor-String 16-bit 8-Pin VSSOP T/R Digital to Analog Converters - DAC 16B Ultralow Glitch Vltg Output DAC IC DAC 16BIT VOLT-OUT 8VSSOP DAC 1-CH Resistor-String 16-Bit 8-Pin VSSOP T/R IC, DAC 16BIT VOLT-OUT 8-MSOP 16-Bit, Ultralow Glitch Voltage Output DAC Texas Instruments , 16 位 DAC, 200ksps, Serial (SPI/QSPI/Microwire)接口, 8针 MSOP封装 |
| 分类 |
商业参数
| 其他名称 | 296-19621-2 | 产品类别 | Digital to Analog Converters - DAC |
| 标准包装数量 | Cut Tape, Tape & Reel | 工厂包装数量 | 250 |
| 标准封装名称 | SSOP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | ||
电气参数
| 接口 | Serial (3-Wire, SPI, QSPI, Microwire) | 信噪比 | 95 dB |
| 满量程 | ±0.5 %FSR | 输入类型 | :Serial |
| 分辨率 | 16 Bit | 输出类型 | Voltage |
| 输出范围 | 0 | INL/DNL（LSB） | ±8 LSB |
| 建立时间 | 10 us | 转换器类型 | General Purpose |
| 数据接口 | Serial | 位数 | 16 |
| 基准类型 | Ext | 数据速率（最大） | 200 Ksps |
| DAC数量 | 1 | 输出电流 | :160µA |
| 供电电压 | 5.5 V | 失真额定值（如THD） | +/- 8 LSB |
| 输出数量 | 1 | 供电类型 | Single |
| 分辨率（位） | :16bit | 电压基准 | External |
| 采样频率 | :200kSPS | 最大额定电流 | Catalog |
| 供电电源 | Single Supply | 增益带宽积 | 0.2 |
| 平均正向功率 | 1 | 输出数量与类型 | 1 Voltage, Unipolar; 1 Voltage, Bipolar |
| 采样率（每秒） | 200k | ||
机械参数
| 宽度 | 3.1(Max) | 重量 | 0.000917 oz |
| 包装方式 | Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8VSSOP | 材料表面处理 | :MSL 2 - 1 year |
| 总长度 | 3.1(Max) | 包装数量 | VSSOP |
| 位数 | 8 | 外壳尺寸-插件 | 0.95(Max) |
| 供应商器件封装 | 8-VSSOP | ||
产品信息
| 系列 | DAC8550 | 软件 | SLAS476E |
| 基本单元 | :8550 | 架构 | Resistor-String |
| 功能框图 | fbd_slas476e.gif | 使用的IC/零件 | View |
| 印刷电路板数量 | 8 | A/D转换器数量 | 1 |
环境参数
| 测试温度 | -40 to 105 | 工作温度 | -40 to 105 °C |
文档与媒体
