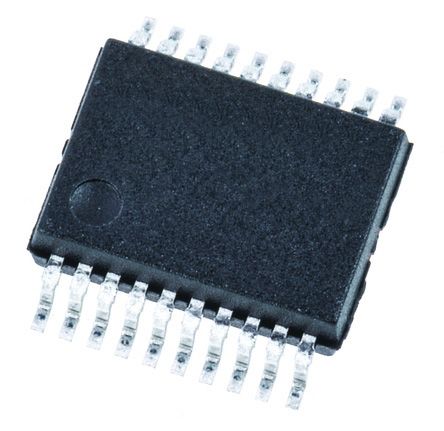

DAC7621E
| 制造商 | Texas Instruments Incorporated |
| 描述 | DAC 1-CH R-2R 12-bit 20-Pin SSOP Tube Digital to Analog Converters - DAC 12-Bit Para Input DAC7621E, 12-Bit 12 Bit DAC 143ksps, Parallel, 20-Pin SSOP DAC, 12BIT, 143KSPS, SSOP-20 12-Bit, Parallel Input Digital-To-Analog Converter Texas Instruments , 12 位 DAC, 143ksps, 并行接口, 20针 SSOP封装 |
| 分类 |
商业参数
| 产品类别 | Digital to Analog Converters - DAC | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 70 | 标准封装名称 | SSOP |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 接口 | Parallel | 输入类型 | :Parallel |
| 分辨率 | 12 Bit | 输出类型 | Voltage |
| 输出范围 | 0 | INL/DNL（LSB） | ±2 LSB |
| 输入功率 | Single | 建立时间 | 7(Typ) us |
| 转换器类型 | General Purpose | 数据接口 | :Parallel |
| 基准类型 | Ext Int | 数据速率（最大） | 143 Ksps |
| DAC数量 | 1 | 输出电流 | :500µA |
| 供电电压 | 5.25 V | 失真额定值（如THD） | +/- 2 LSB |
| 输出数量 | 1 | 供电类型 | Single |
| 分辨率（位） | :12bit | 电压基准 | Internal |
| 通道数量 | 1 | 采样频率 | :143kSPS |
| 最大额定电流 | Catalog | 平均正向功率 | 2.5 |
| 采样率（每秒） | 0.143 | 电源电压范围（典型） | Not Required V |
| 共模瞬态抗扰度（最小） | Industrial | ||
机械参数
| 宽度 | 5.6(Max) | 重量 | 0.006162 oz |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :20 | 封装形式 | 20SSOP |
| 冷却的封装 | SSOP | 材料表面处理 | :MSL 3 - 168 hours |
| 总长度 | 7.5(Max) | 包装数量 | SSOP |
| 位数 | 20 | 外壳尺寸-插件 | 2(Max) - 0.05(Min) |
产品信息
| 系列 | DAC7621 | 软件 | SBAS107 |
| 架构 | R-2R | 功能框图 | fbd_sbas107.gif |
| 使用的IC/零件 | View | 印刷电路板数量 | 20 |
| A/D转换器数量 | 1 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
文档与媒体
