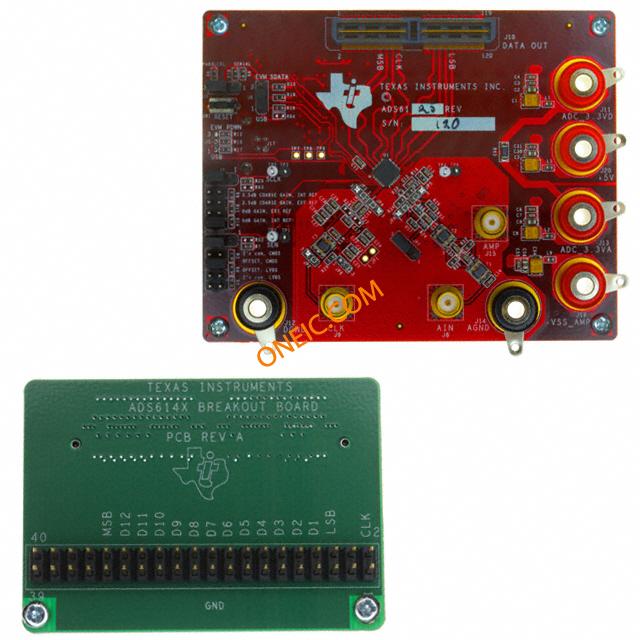

ADS6125EVM
| 制造商 | Texas Instruments Incorporated |
| 描述 | Circuit Board That Allows Designers To Evaluate The Performance Of ADS6125 Device Data Conversion IC Development Tools ADS6125 Eval Module EVAL MODULE FOR ADS6125 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | 296-23159 |
| 产品类别 | Data Conversion IC Development Tools | 标准包装数量 | Boxed |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | No | ||
电气参数
| 接口 | SMA | 输入范围 | 2 Vpp |
| 功率（瓦） | 417mW @ 125MSPS | 数据接口 | Serial, Parallel |
| 位数 | 12 | 采样保持与ADC比率（如1:2） | 1 |
| 供电电压 | 3.3 V to 5 V | ADC/DAC 数量 | 1 |
| 典型功耗（条件） | 417mW @ 125MSPS | 采样率（每秒） | 125M |
机械参数
| 连接器类型 | Serial, Parallel | ||
产品信息
| 类型 | Development Kit | 内容 | 2 Boards |
| 工具类型/特性 | ADS6125 | 使用的IC/零件 | ADS6125 |
环境参数
| 工作温度 | -40°C ~ 85°C | ||
