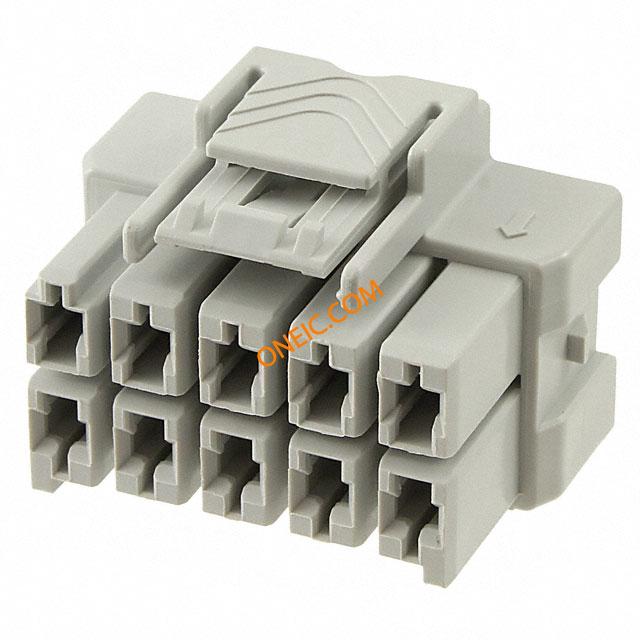

5-1971776-5
| 制造商 | |
| 描述 | Headers & Wire Housings 2x5 plug housing lgr Key A CONN PLUG HOUSING 10POS 6MM PTL 2X5 PLUG HSG HIGH TEMP KEY A LGR |
| 分类 |
商业参数
| 其他名称 | A118806 | 标准包装数量 | 1,100 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600 VAC, 600 VDC | 供电电压 | 600 |
| 中心频率 | 带有 | 连接器阻抗 | 压接 |
| 最大额定电流 | 20 A | ||
机械参数
| 颜色 | Natural | 间距 | 6 mm |
| 包装方式 | Bulk | 壳体颜色 | 灰色 |
| 排间距 | 8.1 mm | 触头类型 | Female Blade Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 接触镀层 | Tin | 紧固类型 | Latch Holder |
| 安装样式 | Panel | 引脚数 | 10 |
| 排数 | 2 | 外壳材料（壳体） | 插头 |
| 触头材料 | Copper Alloy | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 面板安装类型 | 不带 | 端接样式 | 母端 |
| 触点数 | 10 | 接触件端接 | Crimp |
| 位数 | 10 | 兼容外壳尺寸（如TM-700等） | CPA, 母端外壳, 母端（插座）端子, 端子锁定片 |
| 典型触点布局 | 矩阵 | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | Power Triple Lock |
| 钥匙类型 | A | 产品子类型 | Wire Housings |
| 输出配置 | 直式 | 应用细节 | Wire-to-Board |
环境参数
| 工作范围 | 不密封 | 测试温度 | 高温部件 - 非灼热丝 |
| 工作温度 | - 55 C to + 150 C | ||
