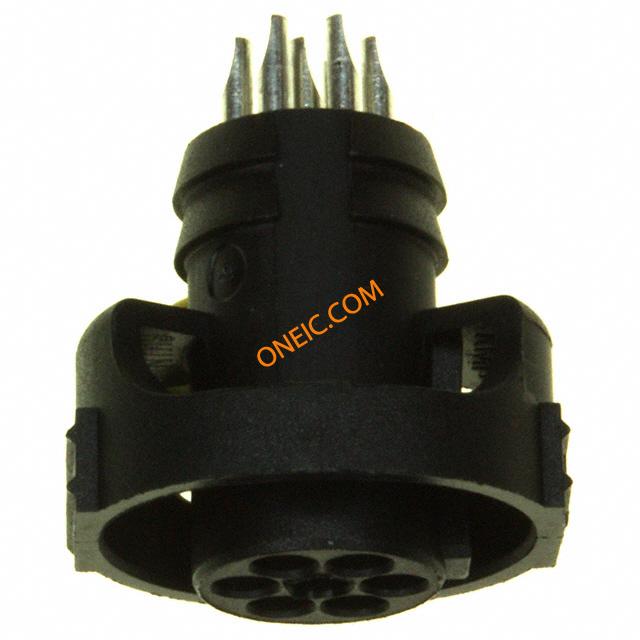

点击放大查看
2-1445642-0
| 制造商 | |
| 描述 | Standard Circular Connector PLUG PIN/SOCKET Micro CPC (Circular Plastic Connector) CONN PLUG CPC 7POS SOLDER CUP Circular Connector Connector;M9.5;Plug;PinAndSocket |
| 分类 |
商业参数
| 其他名称 | A97411 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 110 | 工厂包装数量 | 110 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 00000000 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 额定电压 | 250V | 最大额定电流 | 2A |
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 外壳尺寸 | M9.5 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Solder Cup |
| 触头类型 | Socket | 外壳颜色 | Black |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Tin over Nickel | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 锁定特性 | Positive |
| 壳体材料 | Thermoplastic | 端接样式 | Solder Cup |
| 第一触头极性 | Socket (Female) | 配接方向 | Threaded |
| 触点数 | 7 | 位数 | 7 |
| 外壳尺寸-插件 | M9.5 | 外壳材料及表面处理 | Thermoplastic |
产品信息
| 连接器性别 | Plug | 系列 | CPC |
| 产品子类型 | Connectors | 加载位置数 | 7 |
环境参数
| 机械寿命 | Obsolete | 防护等级 | IP65 - Dust Tight, Water Resistant |
| 工作温度 | 105°C Max | ||
