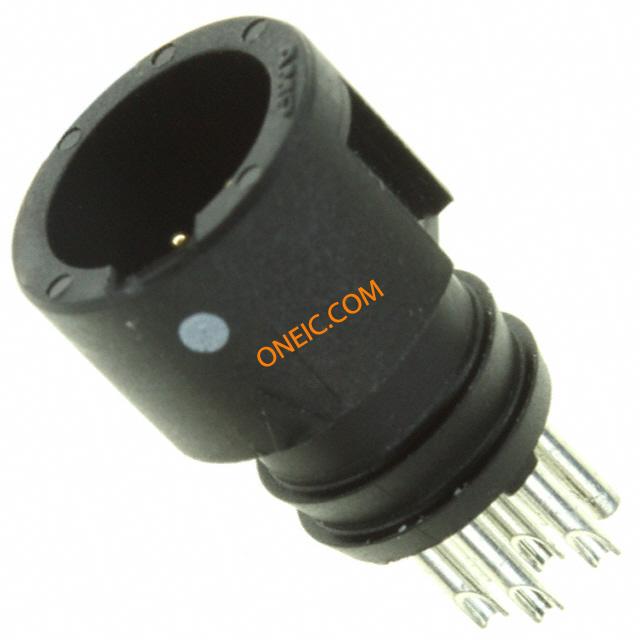

1445555-1
| 制造商 | |
| 描述 | Standard Circular Connector FH RECP SLDR CUP 7P spring probe Micro CPC (Circular Plastic Connector) CONN RCPT CPC 7POS FREE SLD CUP Conn Micro CPC PIN 7 POS Solder Cup ST Panel Mount 7 Terminal 1 Port Conn Micro CPC PIN 7 POS Solder Cup ST Panel Mount 7 Terminal 1 Port Product Highlights:ConnectorPreloadedHousing Gender = ReceptacleContact Gender = Spring Probe7 Positions |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | A29958 | 标准包装数量 | 110 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 2A |
机械参数

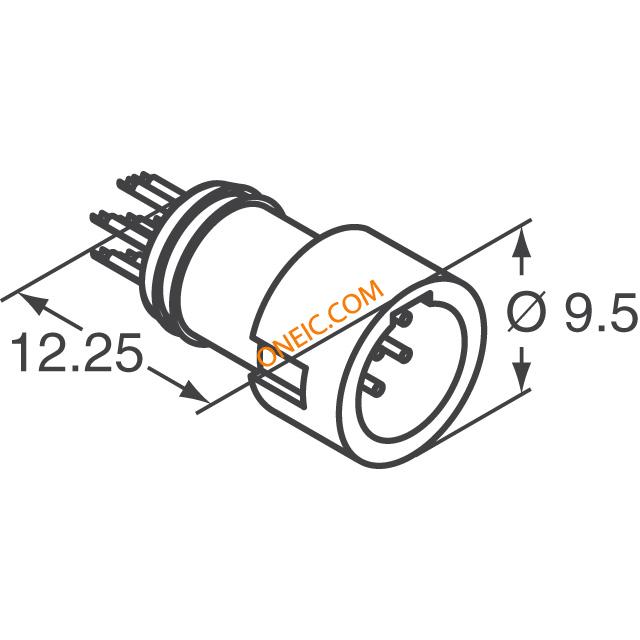

| 包装方式 | Bulk | 外壳尺寸 | M9.5 |
| 方向 | Keyed | 端接方式 | Solder Cup |
| 触头类型 | Spring Probe | 外壳颜色 | Black |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Tin-Lead over Nickel | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 锁定特性 | Positive |
| 壳体材料 | Thermoplastic | 端接样式 | Solder Cup |
| 位数 | 7 | 外壳尺寸-插件 | M9.5 |
| 外壳材料及表面处理 | Thermoplastic | ||
产品信息
| 连接器性别 | Receptacle | 产品特性 | Spring Probe |
| 产品子类型 | Connector | 加载位置数 | 7 |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | 105°C Max |
