点击放大查看

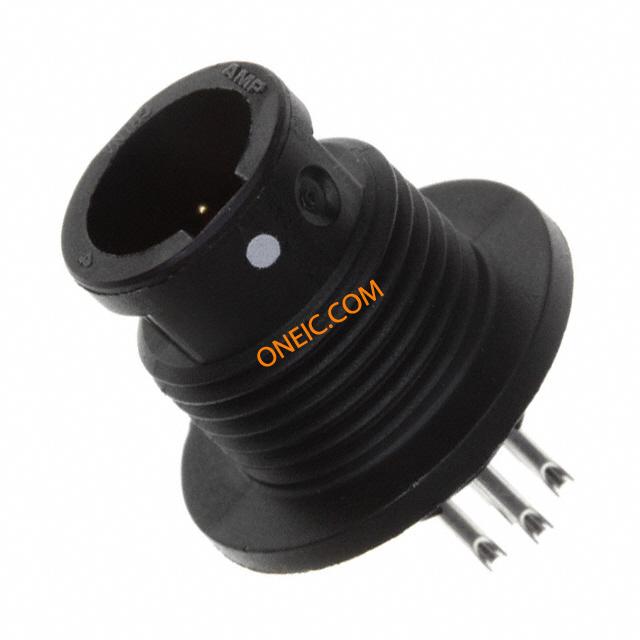

1445718-1
| 制造商 | |
| 描述 | Standard Circular Connector PM RECP SLDR CUP 7P spring probe Micro CPC (Circular Plastic Connector) CONN RCPT CPC 7POS PANEL SLD CUP Conn Micro CPC PIN 7 POS Solder ST Panel Mount 7 Terminal 1 Port |
| 分类 |
商业参数
| 其他名称 | A29956 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 2,200 | 工厂包装数量 | 110 |
合规参数
| RoHS | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 2A |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | M9.5 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Solder Cup | 螺纹尺寸 | 7/16-28 UNEF-2B |
| 触头类型 | Spring Probe | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 外壳镀层 | Tin Lead over Nickel |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Tin-Lead over Nickel |
| 紧固类型 | Latch Lock | 安装样式 | Panel |
| 锁定特性 | Positive | 壳体材料 | Thermoplastic |
| 端接样式 | Solder Cup | 第一触头极性 | Pin (Male) |
| 配接方向 | Threaded | 触点数 | 7 |
| 位数 | 7 | 外壳尺寸-插件 | M9.5 |
| 外壳材料及表面处理 | Thermoplastic | 接触镀层厚度 | 10µin (0.25µm) |
产品信息
| 连接器性别 | Receptacle | 系列 | Micro CPC |
| 产品特性 | Spring Probe | 产品子类型 | Connectors |
| 加载位置数 | 7 | ||
环境参数
| 机械寿命 | Obsolete | 防护等级 | IP65 - Dust Tight, Water Resistant |
| 工作温度 | 105°C Max | ||
