点击放大查看

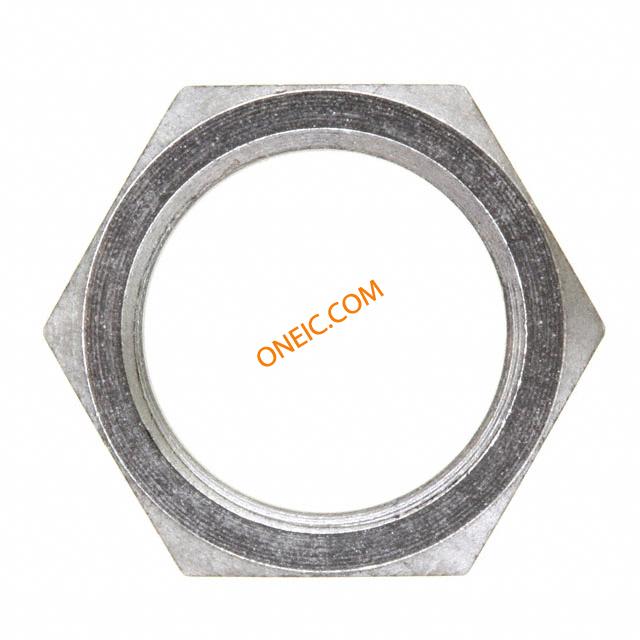

1604197-1

制造商	TE Connectivity Ltd.
描述	Connector Accessories Jam Nut Brass Nickel Finish Micro CPC (Circular Plastic Connector) JAM NUT 7/16-28 UNEF-2B Standard Circular Connector JAM NUT M9.5 Connector Accessories Jam Nut Brass Nickel Finish Product Highlights:Jam NutShell Size = M9.5Thread Size = 7/16-28 UNEF-2BSearch Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector MINICPCACCESSORIES,NUT,JAM,7/16-28,PKGQTY100 NUT,JAM,7/16-28,PKG QTY 100
分类	连接器解决方案圆形连接器大电流圆形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	CPC Miniature	产品类别	Standard Circular Connector
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
无铅定义	Not reviewed for lead free solder process	RoHS/ELV合规状态	RoHS compliant, ELV compliant

机械参数

颜色	Silver	深度	14.05 mm
高度	2.41 mm	外形尺寸(长x宽)	M9.5
材料（通用）	Brass, Nickel Plated	包装方式	袋
外壳尺寸	M9.5	螺母镀层	Nickel
螺纹尺寸	7/16-28 UNEF-2B	螺母材料	Brass
外壳镀层	Nickel	连接器类型	Jam Nut
接触镀层	镍	包装数量	100
配接方向	Threaded	触点数	7
外壳尺寸-插件	M9.5	兼容外壳尺寸（如TM-700等）	Mini CPC

产品信息

类型	Jam Nut	系列	CPC
产品子类型	Jam Nut	附件类型	Jam Nut
射频系列/标准	1604197	适用产品/相关产品	Micro CPC Connectors

文档与媒体

PDF 文档

41820.pdf
