点击放大查看

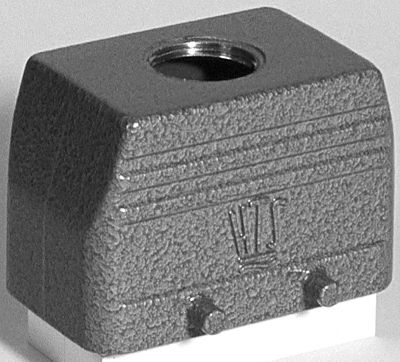

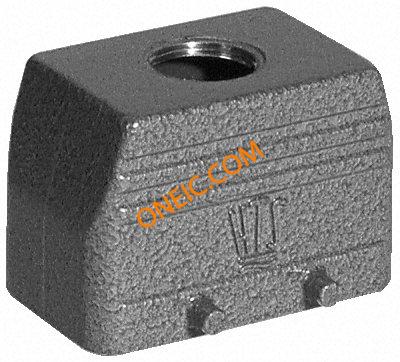

1106430-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | HE Connector, Hood HB.10.STO.1.M25.G Connector Accessories Hood Die Cast Aluminum Silver Gray Finish Loose Piece Connector Accessories Hood Die Cast Aluminum Silver Gray Finish Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 CONN HOOD TOP ENTRY SZ4 M25 HDCONNECTOR,HOODHB.10.STO.1 TE Connectivity HB 系列 电源连接器外壳 HB.10.STO.1.M25.G |
| 分类 |
商业参数
| 其他名称 | A117078 | 标准包装数量 | 5 |
合规参数
| RoHS | RoHS Compliant Part | ||
机械参数
| 尺寸 | 4 | 颜色 | 灰色 |
| 宽度 | 43 mm [ 1.69 in ] | 高度 | 50 mm [ 1.97 in ] |
| 长度 | 73 mm [ 2.88 in ] | 材料（通用） | 铝 |
| 锁定类型 | 壳体底部 | 包装方式 | Bulk |
| 螺纹尺寸 | M25 | 外壳颜色 | Gray |
| 连接器类型 | Hood | 壳体材料 | Aluminum |
| 包装数量 | 5 | 主要材料 | IndustrialRectangular |
| 尺寸/外形 | 2.874" L x 1.693" W x 1.969" H (73.00mm x 43.00mm x 50.00mm) | 外壳尺寸-插件 | 是 |
| AC输出连接器 | 顶部 | ||
产品信息
| 类型 | Hood | 样式 | Top Entry |
| 系列 | HB | 产品子类型 | 附件 |
| 锁定位置 | Locking Clip on Base Bottom | 附件类型 | 护罩 |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 耐磨防护 | 否 |
