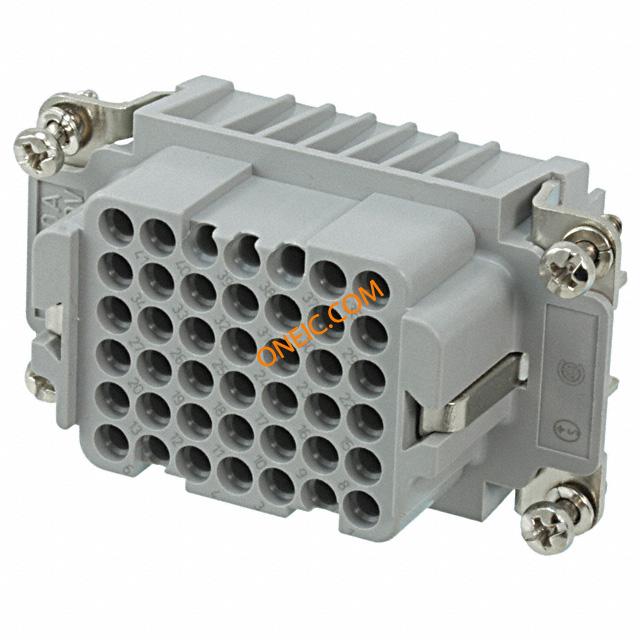

2-1103206-3

点击放大查看

2-1103206-3

制造商
TE Connectivity Ltd.
描述Conn Heavy-Duty Rectangular SKT 42Signal/1Ground POS Crimp ST Panel Mount Loose Piece CONN INSERT SKT SZ4 42POS CRIMP Heavy Duty Power Connectors HN.2D.42.BU.C Conn Heavy-Duty Rectangular SKT 42Signal/1Ground POS Crimp ST Panel Mount Loose Piece Product Highlights:HN.2D.42 SeriesInsertProduct Size = 6Contact Type = Crimp TerminalInsert Style = SocketSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, FEMALE, CRIMP, 42WAY HN.2D.42.BU.C
分类
电缆、电线及组件扁平排线AWG 扁平排线
对参数有疑问？问 AI 助手

商业参数

交货时间59 Days子类别Connector Rectangular
产品类别Heavy Duty Power Connectors标准包装数量Bulk

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
材料阻燃等级UL94 V-0

电气参数

额定电压250V最大额定电流10A

机械参数

尺寸4颜色Gray
重量0.056包装方式Loose Piece
端接方式Crimp触头类型HTS HN.D
安装类型Panel Mount连接器类型Insert without Contacts
接触镀层:Gold / Silver排数:6
触头材料:Copper壳体材料Polycarbonate (PC)
端接样式Crimp第一触头极性:Socket
触点数42Signal/1Ground接触件端接:Crimp
位数42+Ground外壳尺寸-插件:4
第一连接器安装类型:Panel

产品信息

类型Heavy-Duty Rectangular连接器性别RCP
系列:HTS

环境参数

NEMA 机架尺寸:IP65, IP66, IP67, IP68工作温度-40°C ~ 125°C
