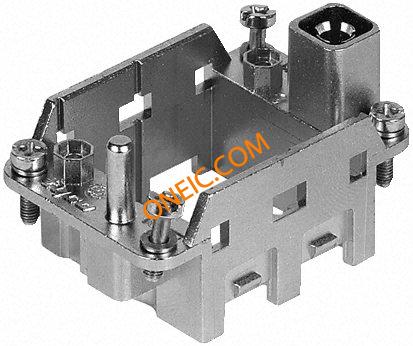

1103250-5

点击放大查看

1103250-5

制造商
TE Connectivity Ltd.
描述HVS-GR.O-4/B.1-3 Heavy Duty Connectors CONN FRAME SIZE 4 MDL HD Connector, HVS Frame size 4 top Heavy Duty Power Connectors ASSY MODULE FRM 1-4 HVS-GR.O-4/B.1-3 HVS-GR.O-4/B.1-3 Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, rectangular industrial, input/output, box to box, power, wire to wire, Heavy Duty HDCONNECTOR,HVSFRAMESIZE4
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格10产品类别Heavy Duty Power Connectors
标准包装数量10工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant / ELV compliant

电气参数

通道数量3.0

机械参数

尺寸1-3长度64
材料（通用）Zinc Alloy包装方式Bulk
框架类型Fixing Frame外壳样式Top
高度（英寸）34.4壳体材料Zinc
包装数量10主要材料IndustrialRectangular
触点数3

产品信息

备注For Size 4 Housings and 3 Modules. / R.O. Version类型Hood
连接器性别Female/Male系列HVS
包含附件6 pcs - 1 Frame, 5 Screws制造商全称HTS
产品子类型Accessory硬件类型Fixing Frame
附件类型Fixing Frame模块数3
