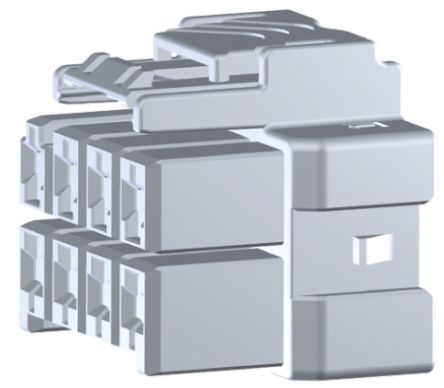

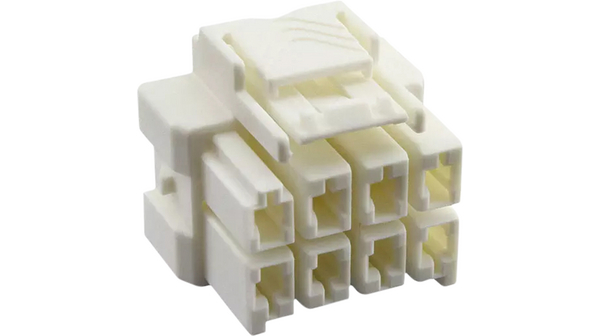

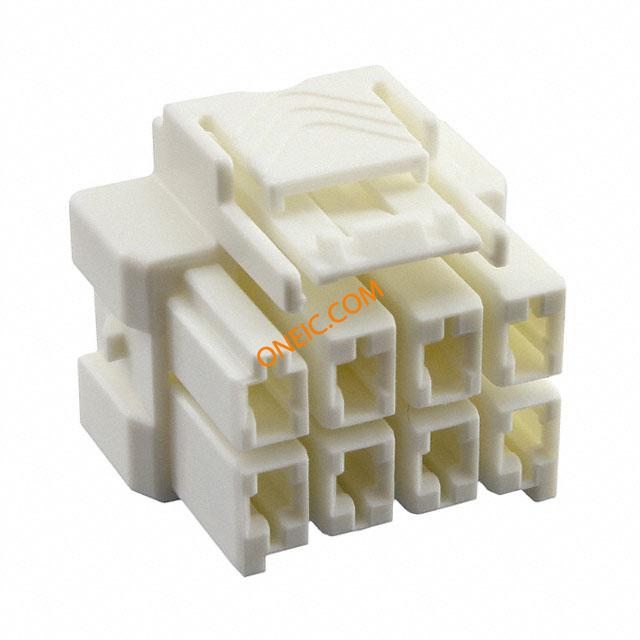

1-1971776-4

制造商	TE Connectivity Ltd.
描述	CONN HOUSING PLUG 8POS 6MM 1-1971776-4 Conn Housing PL 8 POS 6mm Crimp ST Cable Mount CONNECTOR, HOUSING, PLUG, 8POS, 2ROW, 6MM CONNECTOR, HOUSING, PLUG, 8 WAY, PBT Conn;Rect;Plug;8Pos;2Row;PowerTripleLock;W-to-W;2X4;PBT;KeyA Male Housing Pitch6 mm Poles 2 x 4 Multi row / Free hanging/cable mount Power Triple Lock, 1-1971776-4, TE Connectivity TE Connectivity Power Triple Lock 系列 2 行 6mm 节距 8 路直公电缆安装压接连接器外壳 PTL 2X4 PLUG HSG STD TEMP KEY A NAT
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

其他名称

A115801

标准包装数量

1,400

合规参数

RoHS	Lead free / RoHS Compliant	标准	RoHS/ELV
海关税号	85369010	材料阻燃等级	UL94V-0

电气参数

额定电压

:600V

最大持续工作电压（MCOV）

600VAC/VDC

机械参数

颜色	Natural	间距	0.236" (6.00mm)
重量	0	包装方式	Bulk
排间距	0.319" (8.10mm)	触头类型	Female Socket
外壳颜色	Natural	安装类型	Free Hanging (In-Line)
连接器类型	Plug	紧固类型	Latch Holder
排数	2	壳体材料	PBT
主要材料	Rectangular	接触件端接	Crimp
位数	8	中心触点表面处理	6.00(0.236)
典型触点布局	DoubleRow

产品信息

备注	Contacts Not Provided	类型	PlugHousing
系列	:Power Triple Lock	钥匙类型	A
制造商全称	PowerTripleLock	应用细节	Wire-to-Wire
适用产品/相关产品	:1971237, 1971779, 1971781, 1971783, 1971785, 1971787 Receptacle Contacts

环境参数

工作温度

:105°C

文档与媒体

PDF 文档

1729084.pdf
