点击放大查看

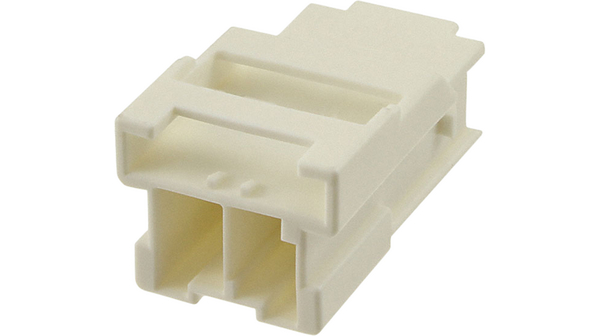

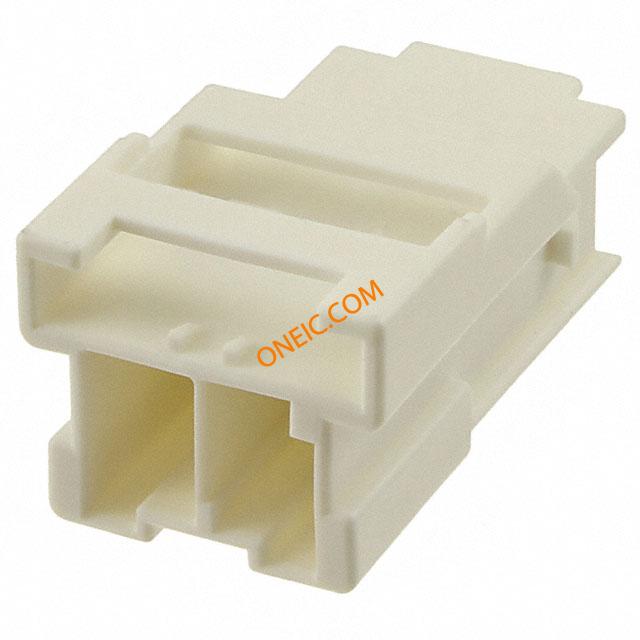

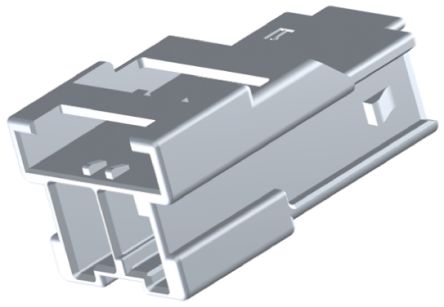

1-1971771-2
| 制造商 | |
| 描述 | CONN RCPT HOUSING 2POS 6MM 1x2 cap housing free hanging Key A nat CONNECTOR, HOUSING, RCPT, 2POS, 1ROW, 6MM CONNECTOR, HOUSING, RCTP, 2 WAY, PBT Conn;Rect;Recept;2Pos;1Row;PowerTripleLock;W-to-W;1X2;PBT;KeyA Female Housing Pitch6 mm Poles 1 x 2 Single row / Free hanging/cable mount Power Triple Lock, 1-1971771-2, TE Connectivity TE Connectivity Power Triple Lock 系列 1 行 6mm 节距 2 路 直 母 电缆安装 压接连接器外壳 PTL 1X2 CAP FREE HANG STD TEMP KEY A NAT |
| 分类 |
商业参数
| 其他名称 | A115788 | 标准包装规格 | 3,000 |
| 标准包装数量 | 3,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHS/ELV |
| 海关税号 | 85369010 | 材料阻燃等级 | UL94V-0 |
电气参数
| 额定电压 | :600V | 最大持续工作电压（MCOV） | 600VAC/VDC |
机械参数
| 颜色 | Natural | 间距 | 0.236" (6.00mm) |
| 重量 | 0 | 包装方式 | Bulk |
| 触头类型 | Tab | 外壳颜色 | Natural |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 排数 | 1 |
| 壳体材料 | PBT | 主要材料 | Rectangular |
| 接触件端接 | Crimp | 位数 | 2 |
| 中心触点表面处理 | 6.00(0.236) | 典型触点布局 | In-Line |
产品信息
| 备注 | Contacts Not Provided | 类型 | SocketHousing |
| 系列 | :Power Triple Lock | 钥匙类型 | A |
| 制造商全称 | PowerTripleLock | 应用细节 | Wire-to-Wire |
| 适用产品/相关产品 | :1971238, 1971780, 1971782, 1971784, 1971786, 1971788 Tab Contacts | ||
环境参数
| 工作温度 | :105°C | ||
