点击放大查看

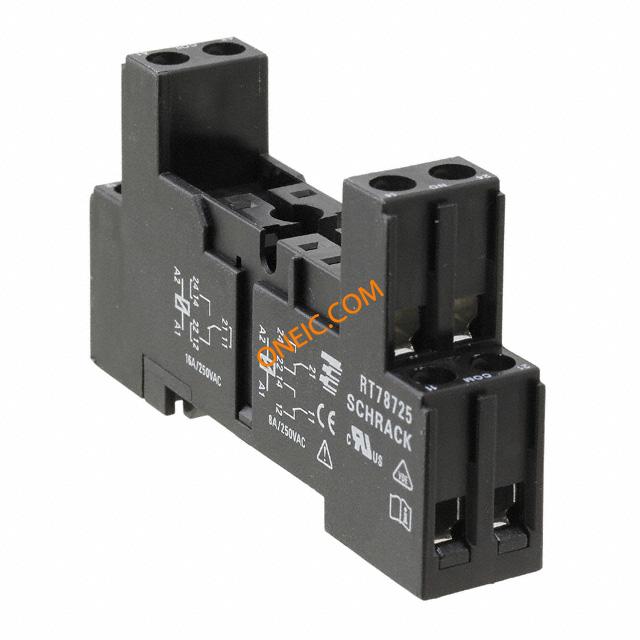

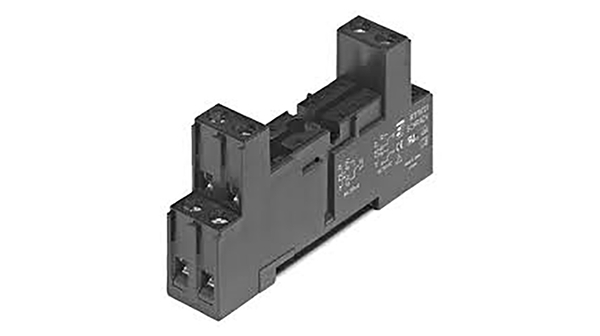

1860306-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Relay Socket SKT 8 POS Screw ST Panel Mount RT78725 SOCKET 5MM W/SCREW TERM DIN RT78725 Search Keywords:relay connectors Conn Relay Socket SKT 8 POS Screw ST Panel Mount Product Highlights:SocketRT SeriesTerminal Type = Screw, DIN Rail Snap-MountWithout Grounding ProvisionSearch Keywords:relay connectors Relay socket 2-pole, 1860306-1, TE Connectivity |
| 分类 |
商业参数
| 标准包装数量 | Boxed | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 抗辐射加固 | No |
电气参数
| 输入端 | .59 | 额定电压 | 240VAC |
| 最大额定电流 | 16/Contact A | ||
机械参数
| 深度 | 15.8 mm | 高度 | 70 mm |
| 端接方式 | Screw | 安装类型 | Panel Mount |
| 连接器类型 | DIN 导轨安装 | 安装样式 | Panel |
| 排数 | 2 | 总长度 | 77 mm |
| 端接样式 | Screw Terminal | 触点数 | 8 |
| 位数 | 8 | 兼容外壳尺寸（如TM-700等） | 工业功率继电器 |
| 典型触点布局 | Screw | ||
产品信息
| 备注 | 传统端子排列, 固定 5mm | 类型 | Relay Socket |
| 连接器性别 | SKT | 系列 | RT, SCHRACK |
| 描述 | Screw terminal socket, screen 5.0 mm with conventional terminal arrangement | 制造商全称 | RT78725 |
| 产品子类型 | 插座 | 附件类型 | 插座 |
| 适用产品/相关产品 | RT Series, SCHRACK | ||
环境参数
| 工作温度 | -40C to 70C | ||
