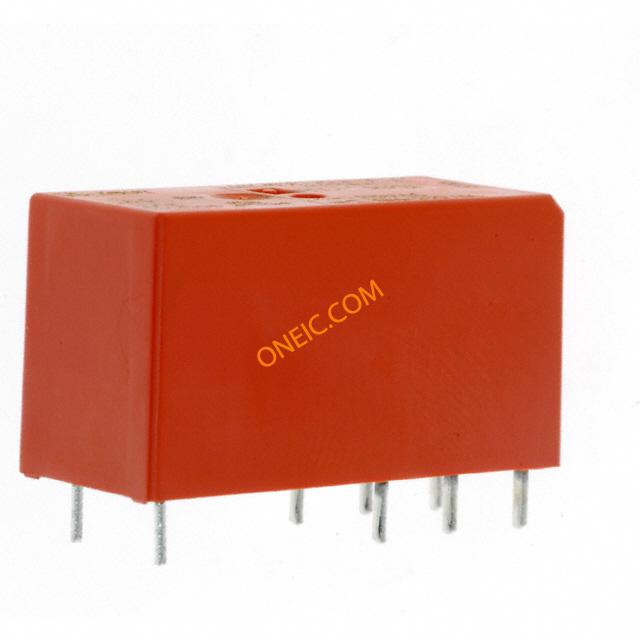

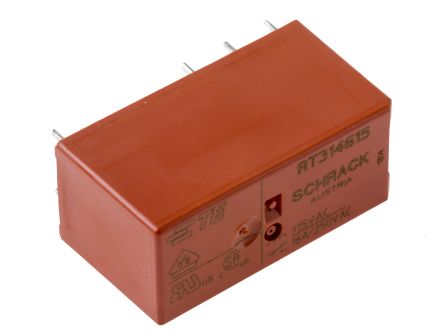

RT314615
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays Relay SPDT 16A RELAY GEN PURPOSE SPDT 16A 115V RELAY RT 115 VAC/16A SPDT PCB relay, 5mm pin, 16A 115Vac Electromechanical Relay SPDT 16A 115VAC 8.1KOhm Through Hole Electromechanical Relay SPDT 16A 115VAC 8.1KOhm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 16 Amps.Monostable Coil Magnetic SystemInput Voltage = 115 VAC RELAY, PCB, SPCO, 115VAC Relay;E-Mech;SPDT;Cur-Rtg16A;Ctrl-V115AC;Vol-Rtg400AC;PCB/Sckt;RT1Pwr TE Connectivity 单刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 115V RT314615 |
| 分类 |
商业参数
| 零件号别名 | 1393240-6 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 20 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | cULus,CSA,VDE,RoHS |
| 海关税号 | 85364900 | 认证机构 | :BEAB, CSA, KEMA-KEUR, VDE |
电气参数
| 线圈类型 | Monostable | 线圈功率 | 0.76 VA |
| 量程（°/s） | :TE - Power PCB Relay RT1 Series | 释放时间 | 6ms |
| 额定功率 | 400mW | 额定电压 | :250VAC |
| 线圈电阻 | 8100 Ohms | 极数 | :1 |
| 输出电流 | :16A | 供电电压 | 115 VAC |
| 开关电压 | 400VAC - Max | Vgs(th)（最大）@ Id | 17.3 VAC |
| 击穿电压 | :5000V | 最大额定电流 | :16A |
| 输出浪涌功率 | 4 kVA | 触点电压（最大） | :250V |
| 最大触点电流 | :16A | 平均正向功率 | 0.75 VA |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 86.3 VAC | 触点额定电流 | 16 A |
| 供电电压 (Vcc/Vdd) | :250V | 驱动电压（最大Rds On，最小Rds On） | 115VAC |
| 额定交流电压（相对地/中性线） | :250V | ||
机械参数
| 深度 | 12.7mm | 宽度 | 12.7 mm |
| 高度 | 15.7 mm | 长度 | 29 mm |
| 重量 | 0.03 | 包装方式 | Tube |
| 端接方式 | Socket | 触点形式 | 1 Form C (SPDT-BM) |
| 高度（最大） | :15.7mm | 引脚间距 | :5mm |
| 柱间距 | :7.5mm | 安装类型 | Through Hole |
| 端子类型 | Through Hole | 安装样式 | Through Hole |
| 引脚数 | :8 | 触头材料 | Silver Nickel |
| 端接样式 | PC Pin | 接触件端接 | Terminals |
| 典型触点布局 | SPDT | ||
产品信息
| 类型 | Power Relay | 系列 | RT1 |
| 产品特性 | Insulation - Class F, Sealed - Flux Protection | 功能 | GeneralPurpose |
| 继电器类型 | General Purpose | 制造商全称 | RTSeries |
| 应用细节 | Power | ||
环境参数
| 动作时间 | 8ms | 工作温度 | -40°C ~ 70°C |
文档与媒体
