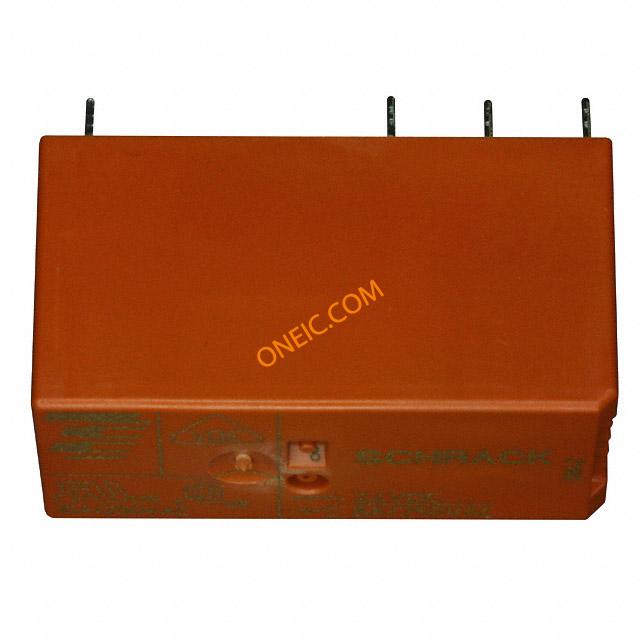

RT424024F
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays 8 AMP 24VDC DPDT RELAY GEN PURPOSE DPDT 8A 24V Relay,power,PCB,DPDT,8A,24Vdc,AgNi cont Electromechanical Relay DPDT 8A 24VDC 1.44KOhm Through Hole Electromechanical Relay DPDT 8A 24VDC 1.44KOhm Through Hole Product Highlights:RT2 SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 8 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode RELAY, PCB DPDT 2 CONTACTS Relay;E-Mech;GenPurp;DPDT;Cur-Rtg8A;Ctrl-V24DC;Vol-Rtg277/30AC/DC;PCBMnt RT424024F |
| 分类 |
商业参数
| 零件号别名 | 1-1419108-7 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 20 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | cULus,CSA,VDE,RoHS |
| 海关税号 | 85364190 | 零件状态 | 1-1419108-7 |
电气参数
| 线圈类型 | Monostable | 线圈功率 | 400 mW |
| 量程（°/s） | :TE - RT2 bistable Series | 线圈电流 | 16.7mA |
| 释放时间 | 3ms | 隔离类型 | 5000V ac |
| 核心电压 | :400V | 额定电压 | 277VAC |
| 线圈电阻 | 1440 Ohms | 极数 | :2 |
| 供电电压 | 24 V | 开关电压 | 277VAC, 30VDC - Max |
| Vgs(th)（最大）@ Id | 2.4 VDC | 开关电流 | 8 A |
| 最大额定电流 | 8A | 触点电压（最大） | :277V |
| 最大触点电流 | :8A | 直流开关电压 | 30V dc |
| 平均正向功率 | 400 mW | 集电极-发射极饱和电压（最大）@ Vge, Ic | 16.8 VDC |
| 触点额定电流 | 8 A | 数字供电电压 | :30V |
| 供电电压 (Vcc/Vdd) | :30V | 驱动电压（最大Rds On，最小Rds On） | 24VDC |
| 额定交流电压（相对地/中性线） | :277V | ||
机械参数
| 深度 | 12.7mm | 宽度 | 12.7 mm |
| 高度 | 15.7 mm | 长度 | 29 mm |
| 重量 | 0.01 | 包装方式 | Tube |
| 端接方式 | Solder | 触点形式 | 2 Form C (DPDT-BM) |
| 高度（最大） | :29mm | 安装类型 | Through Hole |
| 端子类型 | Through Hole | 安装样式 | PCB |
| 引脚数 | 8 | 触头材料 | Silver Nickel |
| 尺寸/外形 | 1.142in.Lx0.5in.Wx0.618in.H(Approx.) | 端接样式 | PC Pin |
| 接触件端接 | PCB | 典型触点布局 | DPDT |
产品信息
| 类型 | Power Relay | 系列 | RT2 |
| 产品特性 | Insulation - Class F, Sealed - Flux Protection | 功能 | GeneralPurpose |
| 继电器类型 | General Purpose | 制造商全称 | RTSeries |
| 应用细节 | Power | ||
环境参数
| 动作时间 | 7ms | 工作温度 | -40°C ~ 85°C |
