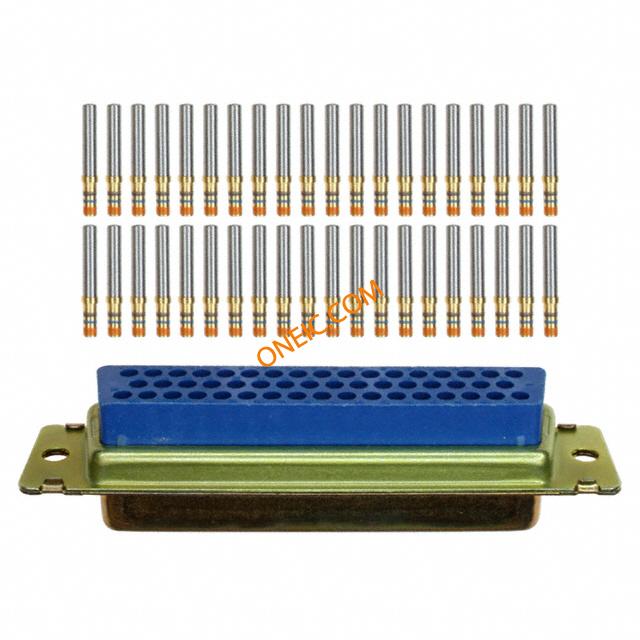

M24308/2-5

制造商	TE Connectivity Ltd.
描述	Conn D-Subminiature RCP 50 POS Crimp ST Panel Mount 50 Terminal 1 Port CONN D-SUB RECEPT 50POS CRIMP
分类	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

最大额定电流

7.5A

机械参数

颜色	Blue	包装方式	Bulk
端接方式	Crimp	触头类型	Signal
安装类型	Cable Mount	连接器类型	Receptacle, Female Sockets
接触镀层	Gold	法兰特征	Housing/Shell (Unthreaded)
排数	3	连接器样式	D-Sub
壳体材料	Polyester	位数	50
外壳材料及表面处理	Steel, Yellow Chromate Plated Zinc	外壳尺寸，连接器布局	5 (DD, D)

产品信息

类型

D-Subminiature

连接器性别

SKT

环境参数

工作温度

-55°C ~ 125°C

文档与媒体

在线文档

1-1757820-0?RQPN=1-1757820-0
