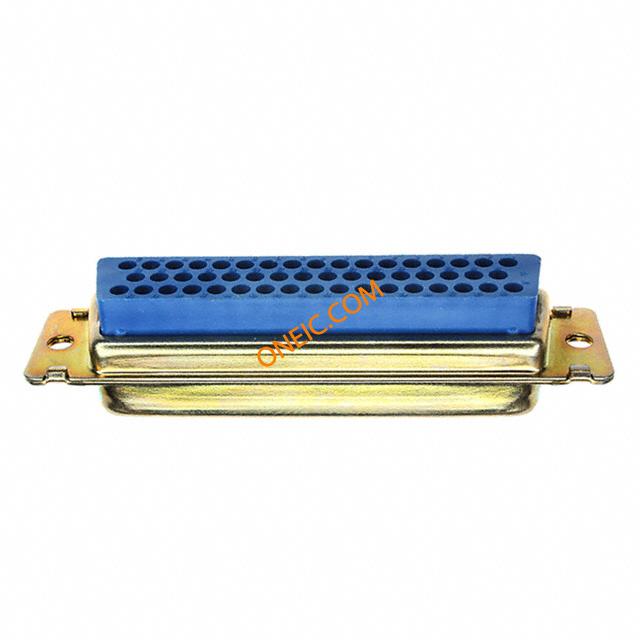

1757819-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 50 POS Crimp ST Panel Mount D-Sub Standard Connectors AMPLI ASSY PLUG STD 109 ZN Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB HOUSING PLUG 50POS AMPLIMITE 109 d-sub cable plug, 50 pin Conn Housing PL 50 POS Crimp ST Panel Mount Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To WireNumber of Positions = 50Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub PLUG, DSUB, CRIMP, STD, 50WAY Connec Conn;D-Sub;CablePlug;50Pos;STR;109Series;Crimp;20AWG AMPLIMITE,ASY,PLUG,STD,109,ZN,5 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | 标准 | MIL-C-24308 |
| 海关税号 | 85369010 | 资质认证 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 连接器阻抗 | No | ||
机械参数
| 颜色 | Blue | 深度 | 15.75mm |
| 宽度 | 9.52mm | 高度 | 15.75 mm |
| 长度 | 67.31mm | 重量 | 0.05 |
| 材料（通用） | Stainless Steel | 包装方式 | Bulk |
| 外壳尺寸 | 5 | 导线线规 | 20 |
| 端接方式 | Crimp | 触点尺寸 | 20 |
| 触头类型 | Crimp Snap-in | 非磁性 | No |
| 外壳颜色 | Blue | 安装类型 | Straight |
| 外壳镀层 | Zinc | 行程角度 | Straight |
| 连接器类型 | Crimp | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 引脚数 | Without | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 本体材料 | :Steel | 触头材料 | Copper Alloy |
| 壳体材料 | PET | 总长度 | 67.31 mm |
| 主要材料 | D-Subminiature | 尺寸/外形 | 67.31 x 9.52 x 15.75mm |
| 端接样式 | Crimp | 触点数 | 50 |
| 介电材料 | Polyester | 位数 | 50 |
| 外壳尺寸-插件 | :DD | 衬套/护套类型 | No |
| 安装孔直径 | 3.05 [.120] | 外壳镀层厚度 | 20µin (0.51µm) |
| 外壳材料及表面处理 | Steel, Yellow Chromate Plated Zinc | 外壳尺寸，连接器布局 | 5 (DD, D) |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 109 |
| 密度 | Standard | 制造商全称 | AMP |
| 产品子类型 | Connector | 连接类型 | Wire |
| 适用产品/相关产品 | :AMPLIMITE 109 Series Connectors | ||
