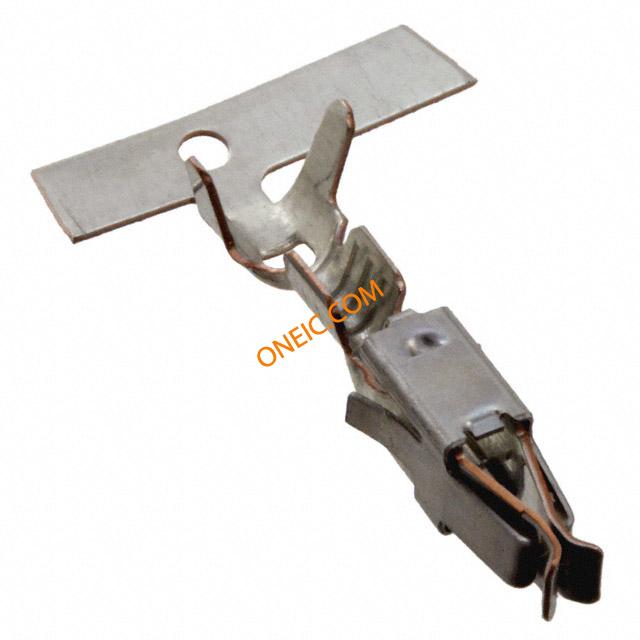

927770-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Automotive Connectors JUNIOR-TIMER KONT Timer Contacts CONN SOCKET 17-20AWG TIN CRIMP Conn Contact F 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Strip Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = Junior-Power-TimerReceptacleWire Range = 0.50-1.00² [20-17] mm [AWG]Insulation Diameter = 1.19 - 2.11 mm, 2.21 - 3.00 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer JUNIOR-TIMER KONT |
| 分类 |
商业参数
| 产品 | Terminals | 其他名称 | A107051CT |
| 产品类别 | Automotive Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 3750 | ||
合规参数
| RoHS | RoHS Compliant | 标准编号 | DIN 72 551 第 6 部分, DIN ISO 6722 第 3 部分 |
电气参数
| 输出端 | 0 – 24 A (Low Power) | ||
机械参数
| 包装方式 | Reel | 电缆类型 | 铜 |
| 导线线规 | 17-20 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 插针或插孔 | Socket |
| 连接器类型 | Connector Power | 接触镀层 | Pre-Tin |
| 安装样式 | Wire | 连接器样式 | 180° |
| 锁定特性 | Locking Lance | 触头材料 | Copper-Iron |
| 包装数量 | 3750 | 端接排数 | 压接 |
| 端接样式 | Crimp | 接触件端接 | Crimp |
| 绝缘直径 | 1.4 – 2.1, 2 – 2.7, 3.4 | 接触件表面处理 - 配合 | 锡 (Sn) |
| 法兰上方插针尺寸 | 2.8 mm [ .11 in ] | 接触镀层厚度 | 39µin (1.00µm) |
| 线规或范围 - AWG | 20 to 17 | ||
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 系列 | Timer | 可密封 | 是 |
| 其他规格 | 30 | ||
环境参数
| 工作温度 | -40 – 130 °C [ -40 – 130 °F ] | ||
文档与媒体
相关型号
1-967625-1
te connectivity / amp
Conn Housing RCP 21 POS 5mm Crimp ST Cable Mount Timer Connectors JR POW TIM 21P Power to the Board JR POW TIM 21P Conn Housing RCP 21 POS 5mm Crimp ST Cable Mount Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 21Housing Color = BrownNot SealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT RECEPTACLE, JPT, 21WAY Connector: wire-wire; JPT; plug; female; w/o terminals; PIN:21 21 Position 5 mm Brown Female Socket Receptacle Housing Timer Connector
1-967623-1
te connectivity / amp
Conn Housing RCP 15 POS 5mm Crimp ST Cable Mount Timer Connectors JUN-POW-TIM-GEH 15P Power to the Board JUN-POW-TIM-GEH 15P Conn Housing RCP 15 POS 5mm Crimp ST Cable Mount Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 15Housing Color = PurpleNot SealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT Connector: rectangular; JPT; plug; female; w/o terminals; PIN:15
2-967059-1
te connectivity / amp
Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Timer Connectors J-P-T GEH KOMPL 4P Heavy Duty Power Connectors 4P JPT RECT HSG Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 4Housing Color = GraySealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, RECEPTACLE, 1 ROW, 4WAY, PBT-GF
1-967059-1
te connectivity / amp
Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Timer Connectors J-P-T GEH KOMPL 4P Power to the Board J-P-T GEH KOMPL 4P Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 4Housing Color = BlackSealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, JPT, 4 POSITION
929504-4
te connectivity / amp
Conn Housing RCP 10 POS 5mm Crimp ST Timer Connectors CONN RECEPT 10POS JR POWER TIMER Automotive Connectors 2X 5P JUN POW TIMGH Conn Housing RCP 10 POS 5mm Crimp ST Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 10Housing Color = BlackNot SealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, JPT, 10WAY Connector: wire-wire; JPT; plug; female; w/o terminals; PIN:10 TE Connectivity Junior Power Timer 系列 2行 10路 直插式安装 黑色 母 外壳 2X 5P JUN POW TIMGH
929504-6
te connectivity / amp
Conn Housing RCP 18 POS 5mm Crimp ST Timer Connectors 2X 9P JUN POW TIMGH Automotive Connectors HSG CAP 2X09P PNL BLK Conn Housing RCP 18 POS 5mm Crimp ST Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 18Housing Color = BlackNot SealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, JPT, 18WAY Connector: wire-wire; JPT; plug; female; w/o terminals; PIN:18 TE Connectivity 2行 18路 直插式安装 黑色 母 外壳
1-967621-4
te connectivity / amp
Conn Housing RCP 9 POS 5mm ST Timer - Connectors JUN-POW-TIM GEH 9P Power to the Board JUN-POW-TIM GEH 9P 1-967621-4 Conn Housing RCP 9 POS 5mm ST Search Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT

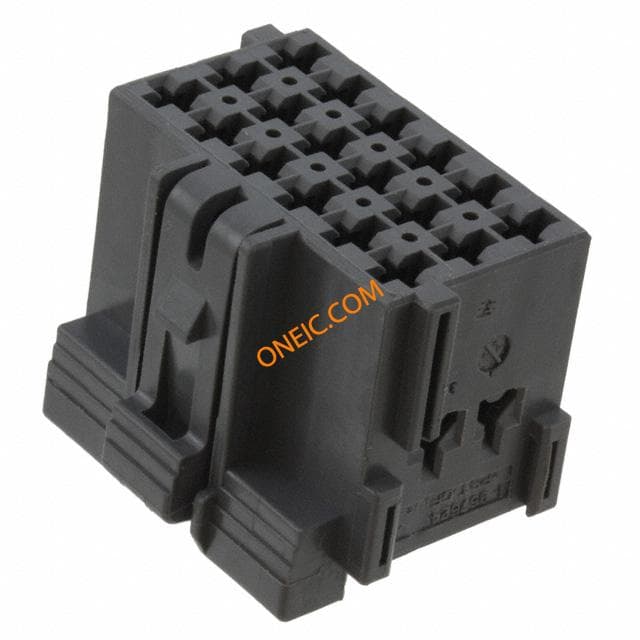

1-967624-1
