点击放大查看

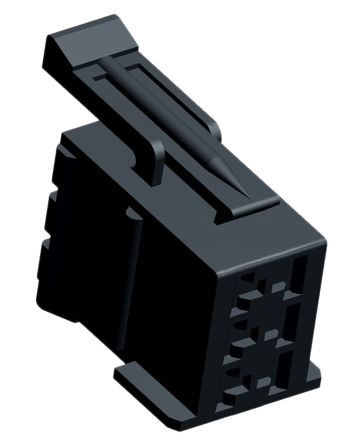

929504-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 6 POS 5mm Crimp ST Timer Connectors 2X 3P JUN POW TIMGH Automotive Connectors 2X 3P JUN POW TIMGH Conn Housing RCP 6 POS 5mm Crimp ST Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 6Housing Color = BlackNot SealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, JPT, 6WAY Connector: wire-wire; JPT; plug; female; w/o terminals; PIN:6 TE Connectivity Junior Power Timer 系列 2行 6路 直插式安装 黑色 母 外壳 |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 2000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 量程（°/s） | :TE - Junior Power Timer Series | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 间距 | 5 mm |
| 密封型 | No | 重量 | 0.004 |
| 包装方式 | Bulk | 排间距 | 0.220" (5.60mm) |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Junior Power Timer |
| 接触镀层 | :- | 安装样式 | Wire |
| 排数 | 2 | 触头材料 | :- |
| 壳体材料 | PBT | 包装数量 | 1 |
| 连接器 - 电缆 | plug | 连接器颜色 | black |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | ||
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 产品子类型 | Receptacle Housing | 适配器系列 | Junior Power Timer |
| 单元数量 | 1 | ||
文档与媒体
相关型号
927768-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Timer Contacts CONN SOCKET 13.5-15.5AWG SILVER Power to the Board TIMER RECPT CONTACT Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Gender = ReceptacleJunior-Power-Timer SeriesWire Range = 1.00-2.50² [17-13] mm [AWG]Insulation Diameter, Range = 2.11 - 3.10 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer CONTACT, RECEPTACLE, AWG17-13.5 CONTACT, CRIMP, SOCKET, 17-13AWG, REEL JUNIOR POWER TIMER

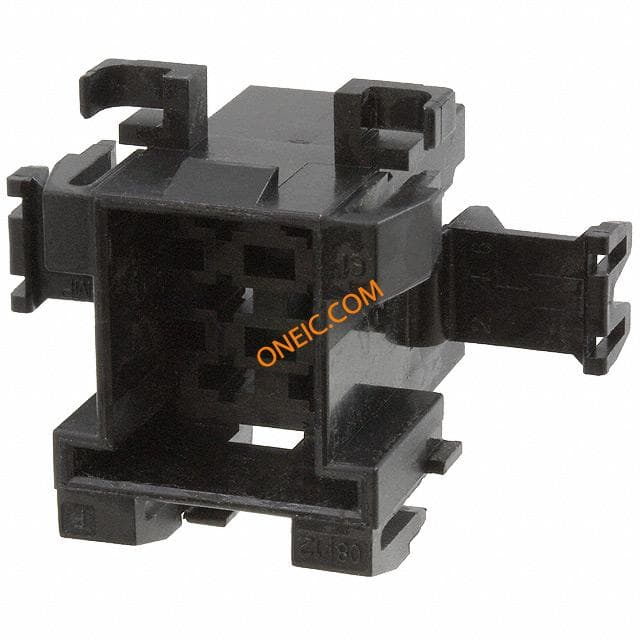

929505-2
