点击放大查看
929504-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 10 POS 5mm Crimp ST Timer Connectors CONN RECEPT 10POS JR POWER TIMER Automotive Connectors 2X 5P JUN POW TIMGH Conn Housing RCP 10 POS 5mm Crimp ST Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 10Housing Color = BlackNot SealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, JPT, 10WAY Connector: wire-wire; JPT; plug; female; w/o terminals; PIN:10 TE Connectivity Junior Power Timer 系列 2行 10路 直插式安装 黑色 母 外壳 2X 5P JUN POW TIMGH |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1400 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 量程（°/s） | :TE - Junior Power Timer Series | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 间距 | 5 mm |
| 密封型 | No | 重量 | 0.004 |
| 包装方式 | Bulk | 绝缘类型 | Insulated |
| 排间距 | 0.220" (5.60mm) | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Junior Power Timer | 接触镀层 | :- |
| 安装样式 | Wire | 排数 | 2 |
| 触头材料 | :- | 壳体材料 | PBT |
| 包装数量 | 1 | 连接器 - 电缆 | plug |
| 连接器颜色 | black | 触点数 | 10 |
| 接触件端接 | Crimp | 位数 | 10 |
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 产品特性 | Timer Connectors | 产品子类型 | Receptacle Housing |
| 适配器系列 | Junior Power Timer | 单元数量 | 1 |
文档与媒体
相关型号
927768-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Timer Contacts CONN SOCKET 13.5-15.5AWG SILVER Power to the Board TIMER RECPT CONTACT Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Gender = ReceptacleJunior-Power-Timer SeriesWire Range = 1.00-2.50² [17-13] mm [AWG]Insulation Diameter, Range = 2.11 - 3.10 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer CONTACT, RECEPTACLE, AWG17-13.5 CONTACT, CRIMP, SOCKET, 17-13AWG, REEL JUNIOR POWER TIMER
929930-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Timer Contacts CONN SOCKET 17-20AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = Junior-Power-TimerReceptacleWire Range = 0.50-1.00² [20-17] mm [AWG]Insulation Diameter = 1.19 - 2.11 mm, 2.21 - 3.00 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer
929505-4
te connectivity / amp
Conn Housing PL 10 POS 5mm Crimp ST Cable Mount FF TAB HOUSING 2X5P Automotive Connectors FF TAB HOUSING 2X5P Conn Housing PL 10 POS 5mm Crimp ST Cable Mount Product Highlights:Tab HousingConnector Type = Junior Power TimerTab Fit = 2.79 x 0.81 mmNumber of Positions = 10Housing Color = BlackSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, 2.8MM, 10WAY TE Connectivity Junior Power Timer 系列 2行 10路 直插式安装 黑色 母 外壳
927770-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Automotive Connectors JUNIOR-TIMER KONT Timer Contacts CONN SOCKET 17-20AWG TIN CRIMP Conn Contact F 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Strip Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = Junior-Power-TimerReceptacleWire Range = 0.50-1.00² [20-17] mm [AWG]Insulation Diameter = 1.19 - 2.11 mm, 2.21 - 3.00 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer JUNIOR-TIMER KONT
927771-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Automotive Connectors JTIMER SKT 20-17 CONN SOCKET 17-20AWG TIN CRIMP Automotive Connectors JTIMER SKT 20-17 Reel of 4000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = Junior-Power-TimerReceptacleWire Range = 0.50-1.00² [20-17] mm [AWG]Insulation Diameter = 1.40 - 2.31 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer CONTACT, SOCKET, 20-17AWG CONTACT, CRIMP, SOCKET, 20-17AWG, REEL JUNIOR POWER TIMER CONTACT
967632-1
te connectivity / amp
Connector Accessories 12 POS Secondary Lock Polybutylene Terephthalate/Acrylonitrile Styrene Acrylate Green Timer Connectors CONN TAB HSNG SEC LOCK JPT 12POS JPT Timer 2.8 12 way secondary lock Automotive Connectors 2 KONT-SICHERUNG 12P Connector Accessories Timer Connector Secondary Lock Polybutylene Terephthalate Green Connector Accessories 12 POS Secondary Lock Polybutylene Terephthalate/Acrylonitrile Styrene Acrylate Green Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 12Housing Color = GreenNot SealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT JPTTimer2.812waysecondarylock Secondary lock; JPT; green; Application: x-967622-x, x-967627-x TE Connectivity 辅助锁, 使用于未密封 2.8mm 插片外壳 2. KONT-SICHERUNG 12P
927770-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Timer Contacts CONN SOCKET 17-20AWG TIN CRIMP Automotive Connectors JUNIOR-TIMER KONT Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = Junior-Power-TimerReceptacleWire Range = 0.50-1.00² [20-17] mm [AWG]Insulation Diameter = 1.19 - 2.11 mm, 2.21 - 3.00 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer CONTACT, SOCKET, 20-14 AWG, CRIMP CONTACT, CRIMP, SOCKET, 20-17AWG, REEL JUNIORPOWERTIMERCONTACT;Receptacle;20-18AWG JUNIOR-TIMER KONT
927768-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Timer Contacts CONN SOCKET 13-17 AWG TIN Power to the Board JUNIOR-TIMER KONT 3300 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = Junior-Power-TimerReceptacleWire Range = 1.50-2.50² [15.5-13.5] mm [AWG]Insulation Diameter = 2.11 - 3.10 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer CONTACT, SOCKET, 17-13 AWG, CIRMP CONTACT, CRIMP, SOCKET, 17-13AWG, REEL JUNIOR POWER TIMER CONTACT
967635-1
te connectivity / amp
Connector Accessories 21 POS Secondary Lock Timer Connectors CONN RETAINER CLIP JPT Timer 2.8 21 way secondary lock Automotive Connectors 2.0 KONT Connector Accessories 21 POS Secondary Lock Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 21Housing Color = BrownNot SealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT JPTTimer2.821waysecondarylock TE Connectivity MCP 系列 辅助锁, 使用于未密封 2.8mm 插片外壳 2.0 KONT
927773-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Timer Contacts CONN SOCKET 13-17AWG TIN CRIMP Automotive Connectors JUNIOR POWER TIMER 9000 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = Junior-Power-TimerReceptacleWire Range = 1.00-2.50² [17-13.5] mm [AWG]Insulation Diameter = 2.70 - 4.10 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer CRIMP CONTACT, SKT, 13-17 AWG CONTACT, CRIMP, SOCKET, 17-13AWG, REEL CONTACT, SOCKET, CRIMP TE Connectivity 压接接线端子, 使用于Junior Power Timer JUNIOR POWER TIMER
927777-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Timer Contacts CONN SOCKET 13.5-15.5AWG TIN Automotive Connectors JUNIOR POWER TIMER CONT Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = Junior-Power-TimerReceptacleWire Range = 1.50-2.50² [15.5-13.5] mm [AWG]Insulation Diameter = 2.11 - 3.10 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer
927768-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Timer Contacts CONN SOCKET 13-17AWG TIN Automotive Connectors JTIMER SKT 17-13 Reel of 3300 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = Junior-Power-TimerReceptacleWire Range = 1.00-2.50² [17-13.5] mm [AWG]Insulation Diameter = 2.11 - 3.10 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer CONTACT, RECEPTACLE, AWG17-13.5 CONTACT, CRIMP, SOCKET, 17-13AWG, REEL JUNIOR POWER TIMER CONTACT

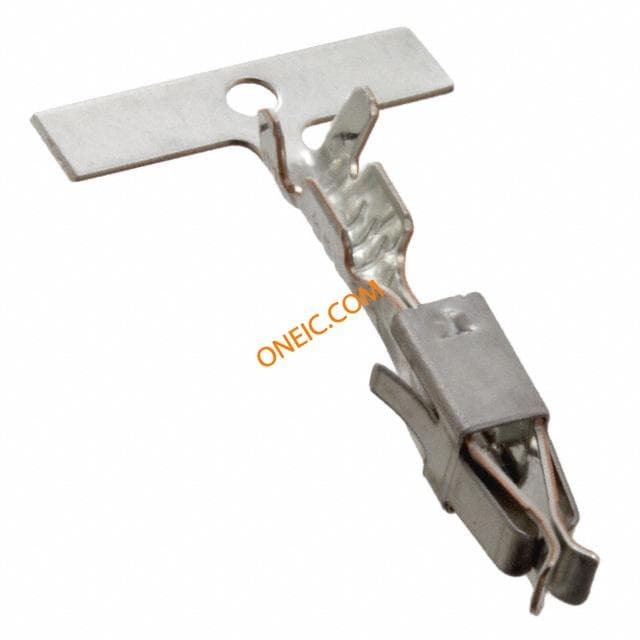

927771-3
