926475-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT 3POS .100 CRIMP BLACK Headers & Wire Housings HSG RECPT 1X03P Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 3Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE, 3WAY 3WSKTSHELLS/R 03P MODU 4 HSG.S.R. |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 量程（°/s） | :TE - AMPMODU Mod IV Series | 额定电压 | :250V |
| 工作电压 | :250V | 最大额定电流 | :3A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.001 | 包装方式 | Bulk |
| 出线方向 | With | 排间距 | 2.54 mm |
| 端接方式 | :Crimp | 触头类型 | Female Socket |
| 第二连接器 | Without | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Crimp |
| 接触镀层 | :Gold | 排数 | 1 |
| 封装形式 | Receptacle | 触头材料 | :Phosphor Bronze |
| 壳体材料 | Polyester (PBT) | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | Without |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | 中心触点材料 | 2.54 x 2.54 [.100 x .100] |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mod IV |
| 预加载 | No | 编码、键控 | No |
| 产品子类型 | Housing | ||
文档与媒体
相关型号
926478-1
te connectivity / amp
Connector Accessories Retention Plug Polycarbonate Black .100 AMPMODU Headers, Housings & Contacts CONN RETENTION PLUG W/STRAIN REL Headers & Wire Housings RETENTION FORK Connector Accessories Retention Plug Polycarbonate Black Product Highlights:AccessoryAccessory Type = Retention PlugWith Strain ReliefMod IVSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RETENTION FORK, BLACK RETENTION FORK
141603-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Headers & Wire Housings MOD-4 REC.CONTACT .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 26AWG 30GOLD CRIMP 141603-3 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.40 mmWire Range = 0.12-0.15; [26] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MOD-4 REC.CONTACT
2-167301-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 26-20AWG CRIMP TIN Crimp contact 24-20 awg ICP tin Mod IV Headers & Wire Housings CONTACT 24-20AWG Contact SKT Crimp ST Cable Mount Reel Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.40 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, CRIMP, RECEPTACLE, 24-20AWG CONTACT, CRIMP, SOCKET, 24-20AWG, REEL Crimpcontact24-20awgICPtinModIV Contact; female; 0.2÷0.6mm2; AMPMODU MOD IV; tinned; crimped TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀锡触点 MOD-4 REC.CONT.SCP
826468-3
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole CONN HEADER 3POS R/A .100 GOLD Headers & Wire Housings 03P PIN HEADER Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 3Mating Post Length = 6.70 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 3P MOD II SHROUDED HEADER, RT ANG.
86016-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Headers & Wire Housings STANDARD PRESSURE 24-20 AWG gold .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 20-24AWG 15AU CRIMP Crimp connector,rcpt,snap-in,Mod IV,Ni Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.75 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, CRIMP, RECEPTACLE, 24-20AWG Contact;ModIV;24-20AWG;Crimp;250;3A;750V;-65degC;105degC TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀金镀镍触点 MOD IV RECP LP
167301-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .100 AMPMODU Headers, Housings & Contacts CONN RCPT CONTACT 24-20AWG GOLD Crimp contact 24-20 awg ICP gold Mod IV Contact SKT Crimp ST Cable Mount Reel Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.40 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, CRIMP, RECEPTACLE, 24-20AWG CONTACT, CRIMP, SOCKET, 24-20AWG, REEL AMPMODUMOD.4;Receptacle; Contact; female; 0.2÷0.6mm2; 20÷24AWG; AMPMODU MOD IV; crimped TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀金触点 MOD-4 REC.CONT.SCP

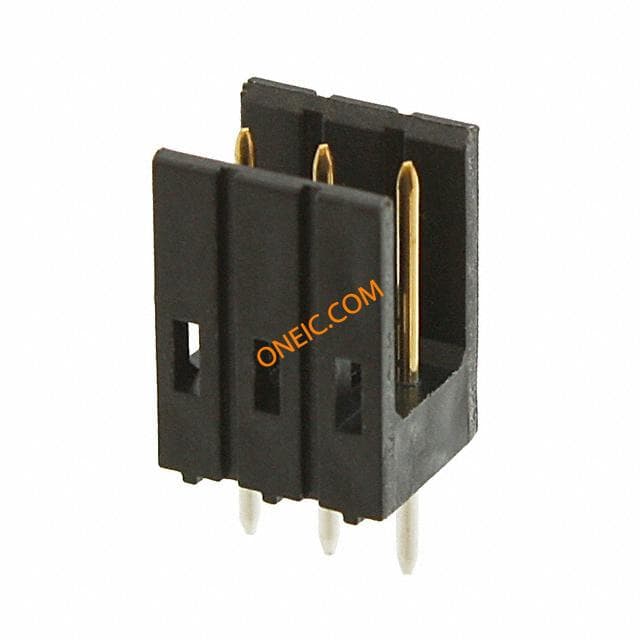

826467-3
