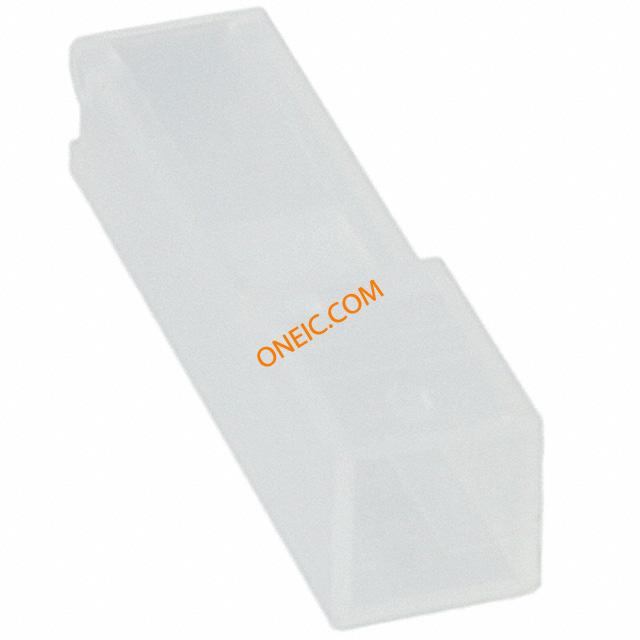

点击放大查看
925387-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 1 POS Crimp ST Cable Mount Loose Piece Headers & Wire Housings HOUSING CLEAR FASTON Uninsulated Receptacles & Housings CONN HOUSING 1CIRCUIT CLEAR FASTON, housing, clear, 2.79 Conn Housing RCP 1 POS Crimp ST Cable Mount Loose Piece Product Highlights:HousingNumber of Circuits = 1Tab Fit = 2.79 mmPolyamide 6.6 MaterialHousing Color = ClearSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING HOUSING, FASTON, 2.79MM, 1WAY FASTON,housing,clear,2.79 Insulating sleeve 2.8 x 0.8 mm 5 mm 20 mm 6 mm Polyamide 6.6 transparent, 925387-1, TE Connectivity TE Connectivity AMP FASTON 系列 1 触点 尼龙 66 压接端子外壳 FASTON 110 HSG REC NYLON CLEAR |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 量程（°/s） | :TE - FASTON Series | ||
机械参数
| 颜色 | Clear | 深度 | 20mm |
| 间距 | Not Required mm | 宽度 | 5mm |
| 高度 | 5 mm | 长度 | 5mm |
| 重量 | 0.004 | 材料（通用） | Polyamide 6.6 |
| 包装方式 | Bulk | 插片宽度 | 2.79 [.110] |
| 外壳颜色 | Clear | 安装类型 | Straight |
| 端子尺寸 | 0.110" (2.79mm) | 端子类型 | Quick Connect, Disconnect |
| 接触镀层 | :- | 排数 | 1 |
| 壳体材料 | Nylon | 总长度 | FASTON .110 |
| 包装数量 | Loose Piece | 触点数 | 1 |
| 位数 | 1 | ||
产品信息
| 备注 | Slide on from Front. | 类型 | Housing |
| 样式 | Housing | 连接器性别 | RCP |
| 系列 | AMP FASTON | 产品子类型 | Accessories |
| 电路数 | 1 | 适用产品/相关产品 | 0.110" (2.79mm) Quick Connects |
