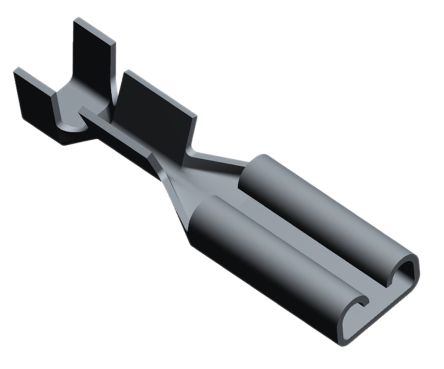

点击放大查看
5-160303-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 20-22AWG RCP 15mm 3.7mm Tin Strip Terminals Recpt 2.79 x 0.79 mm FASTON Uninsulated Receptacles & Housings CONN RCPT FASTON 20-22AWG TIN Quick Disconnect Terminal 20-22AWG RCP 15mm 3.7mm Tin Strip Product Highlights:ReceptacleTab Fit = 2.79 x 0.79 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TERMINAL. FASTON, 2.79X0.79MM CONN QC RCPT 20-22AWG 0.110 TE Connectivity FASTON .110 系列 压接插座 , 2.8 x 0.8mm, 镀锡触芯 FASTON 110 20-22AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A116270CT |
| 产品类别 | Terminals | 标准包装数量 | 60,000 |
| 工厂包装数量 | 10000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 深度 | 3.7 mm | 表面处理 | Tin |
| 重量 | 0.004 | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 2.79 x 0.79 [.110 x .031] |
| 电缆类型 | Regular Wire | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.250" (6.35mm) | 导线线规 | 20-22 AWG |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | :2.79mm x 0.78mm |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | :Disconnect | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 箔压接区域 | F-Crimp | 插入力 | Normal |
| 触头材料 | Brass | 绝缘颜色 | :- |
| 总长度 | Commercial | 包装数量 | Strip |
| 绝缘高度 | Insulation Support | 绝缘直径 | 1.30-2.00 [.051-.079] |
| 绝缘材料 - 材质 | :- | 线规或范围 - AWG | :22AWG |
| 线规或范围 - mm² | 0.30-0.60² [22-20] | 第二连接器安装特性 | No |
产品信息
| 备注 | Chamfered | 连接器性别 | Female |
| 系列 | 250 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
